Split absolute encoder SAR58K24

Application Range：Robots, DD motors, industrial automationr, Radar, non-standard (equipment/systems)r, UAV turntables, turntables Product Features : Absolute encoder based on optical reflection principle, bearing-free r, Small space requirement

Email:

Inquire Now
File Download

 Contact US !

View similar products

Split Absolute Encoder

Tag list

Split absolute encoder

  • Detailed

  •

    Basic InformationModelSAR58K24
    Product TypeSplit Photoelectric Absolute Encoder
    Mechanical ParametersOuter Diameter58mm
    Shaft Diameter10-24mm （Hollow Shaft）
    Maximum Speed3000 r/min
    Shaft LoadRadial (≤20N) ; Axial (≤10N)
    Electrical ParametersResolution10-22 bit Single - turn
    Supply VoltageDC5V / DC10-30V
    Output Code Binary Code / Gray Code
    Environmental ParametersOperating Temperature-40~65℃
    Protection RatingNA

    Asynchronous Serial

    Communication Protocol

    RS422 / RS485 / RS232

    Communication Interface

    Timed Transmission; Timed + Clear; Pulse Handshake; Handshake + Clear; Bus Command; Bus + Clear; MODBUS

    Baud Rate

    115200 / 57600 / 38400 / 19200 / 9600 / 4800

    Update Rate (Hz)

    2000 / 1000 / 500 / 400 / 200 / 100 / 50 / 20

    Synchronous Serial

    Communication Protocol

    SSI / CANopen / BiSS - C

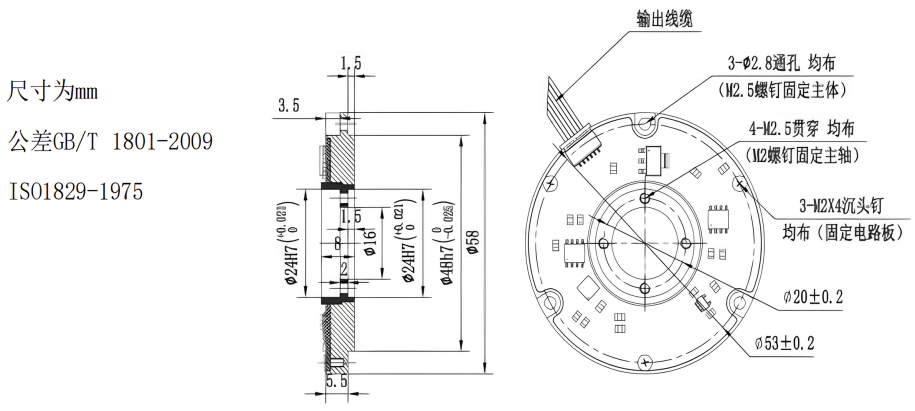

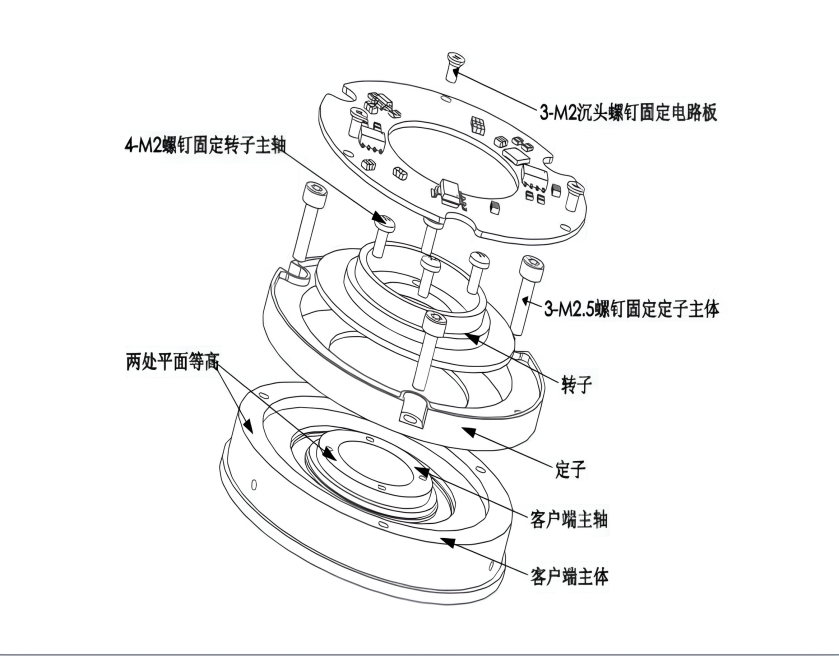

    Drawing Dimension Reference：
