Absolute Linear Grating Scale RLA400
View similar products
Tag list
- Detailed
-
The RLA400 series absolute linear scale meets a maximum measuring length of 1240mm. it supports position value transmission via protocols such as Biss-c (32/26bit), SSl (27/30/32bit), Fanuc, Mitsubishi,Panasonic and DRlVE-CLiO, with an effective resolution of up to 5nm.

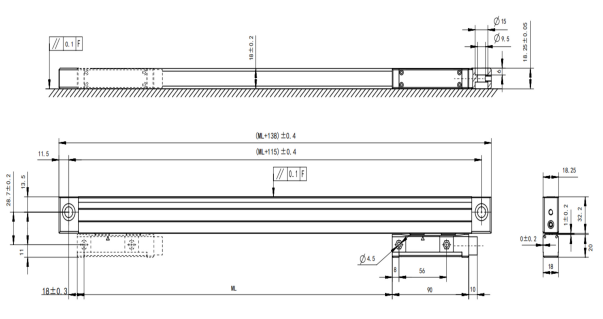

Model RLA400 Absolute Enclosed Linear Grating Ruler Measurement 70, 120, 170, 220, 270, 320, 370, 420, 470, 520, 570, 620, 670, 720, 770, 820, 870, 920, 970, 1020 (Note: ≤620mm recommend auxiliary fixing clamps) Accuracy ±3μm; ±5μm Pitch 20μm Resolution 5nm; 10nm; 50nm; 100nm Supply Voltage 5V±5% Electrical Output Interface SSI Biss - C Fanuc Panasonic Plug DB9 pin; DB15 pin Operating Temperature 0～50℃ Protection Class IP53, with compressed air IP64 Drawing Dimension Reference：
