【High -End】Incremental Open Steel Band Grating RDC-02
View similar products
Tag list
- Detailed
-
The RDC-02 open - design grating ruler can accurately read position information during mechanical movement, yet there is no contact whatsoever between the reading head and the scale. Therefore, there will be no friction between the reading head and the scale either. All electronic components, including the subdivision circuit, are all integrated into the reading head. The reference mark, located on the grating ruler, is synchronized with the incremental scale lines. The application of high technology makes the product have stable performance and a compact structure perfectly achieving high speed, high resolution and high precision.
Product Model
RDC02 Incremental Open - type Linear Steel Tape Ruler
Measurement
1M Maximum Steel Strip 10M
Accuracy
5μm
Pitch
20μm
Resolution
1um / 0.5um / 0.1um / 0.05um /0.02um
Supply Voltage
5V±5% <150mA (No load)
Signal Waveform
TTL
Cable Length
1-meter or 3-meter Cable
Plug
DB15 Pin
Operating Temperature
-5～70℃
Protection Class
IP40

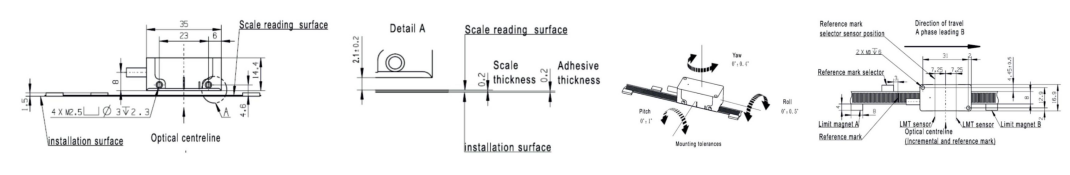

Drawing Dimension Reference：
