Detailed

Model	RAM47-47.1-47.2-47.3 Absolute Value Magnetic-Electric Split-type
Outer Diameter	∅47mm
Shaft Diameter	φ6mm；φ8mm
Supply Voltage	5V±0.25
Battery Voltage	3.6V
Communication Interface	RS485
Baud Rate	2.5MHz；4MHz
Update Rate	16K
Communication Protocol	Timed Transmission
Communication Code System	Positive Logic Binary Code
Resolution-Single-Turn	17bit
Resolution-Multi-Turn	16bit
Operating Speed	≤6000rpm
Operating Temperature	-10°-90°
Operating Humidity	＜90% RH（no condensation）

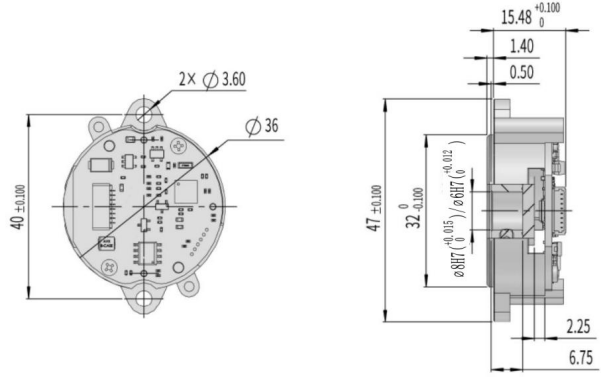

Drawing Dimension Reference：
