Flange EncoderI EC71B5
View similar products
Tag list
- Detailed
-
The lEC series flange encoder provided by our company.Our lECflange encoder is based on the principle of split magnetic-electric. As therotor rotates with the motor shaft, it generates a changing magnetic fieldwhich is detected by the Hall sensor on the stator to output incrementasignals. The electronic components are fully encapsulated in epoxy resin,ensuring the encoder remains unaffected by external factors. We cancustomize the cable length and other requirements, such as different sizesand mounting holes, according to customer needs.
Model
IEC71B5
Product Type
IEC Series c B14 / B5
Size
63-160mm
Pluses per rotation
60, 30, 15, 10, 6, 5, 3, 2, 1
(Optional: 64, 128, 256, 512, 1024, 2048)
Supply Voltage
DC5V; DC12-24V;DC10-30V
Electrical outputform
NPN Open Circuit; PNP Open Circuit
Output Signal
90° Phase - Shifted A & B Signals
Maximum Speed
3000r/min
Operating Temperature
-20～100℃

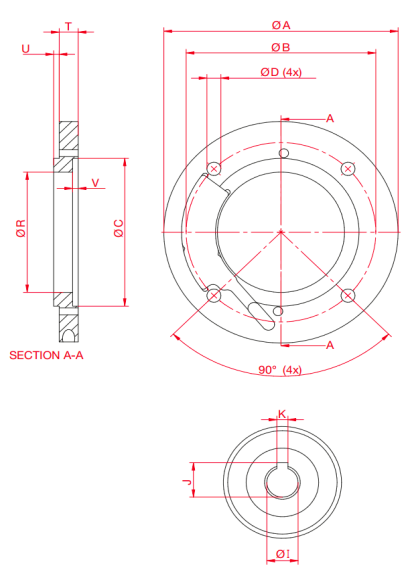

Drawing Dimension Reference：
