Photoelectric encoder - Intergrated RAA56U10

Integrated Transmissive Absolute Photoelectric Encoder OD56mm

Email:

Inquire Now
File Download

 Contact US !

View similar products

Absolute Encoder

Tag list

Photoelectric encoder

  • Detailed

  •

    Model

    Basic：RAA56U10-12D1TLKT-23/16B

    Outer Diameter

    ∅56mm

    Shaft Diameter

    φ9.25mm (Taper 1:10）

    Supply Voltage

    5V±0.25

    Battery Voltage

    3.6V

    Communication Interface

    RS485

    Baud rate

    2.5MHz (Optional for Mass Production)

    Update Rate

    16K

    Communication Protocol

    Timed Transmission

    Communication Code System

    Positive Logic Binary Code

    Resolution-Single-Turn

    23bit (17bit, 25bit, 26bit Optional)

    Resolution-Multi-Turn

    16bit

    Operating Speed

    Default ≤6000rpm;  High Speed (6000 - 12000rpm)

    Operating Temperature

    -10°-90°

    Operating Humidity

    ＜90% RH（no condensation）

    Protection Class

    IP64

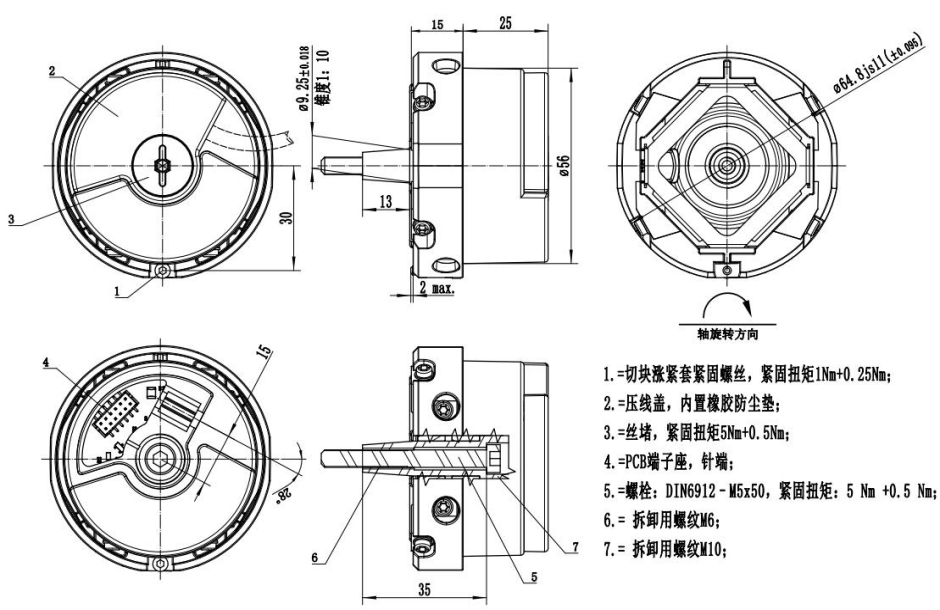

    Drawing Dimension Reference：
