Incremental Encoder RCC25S
View similar products
Tag list
- Detailed
-
The RCC25S is widely used as a sensor for autom atc contro, automatic measurem en, and measurement of angle andspeed.Small size,light weight, excelen
performance,suitable for small space applications.
Compact size and resolution up to 1200 pulses.Model RCC25S4; DCC25S4
Product Type Solid-shaft Incremental Encoder
RCC: Common / DCC: Reinforced
Outer Diameter 25mm
Shaft Diameter 4mm（Solid Shaft）
Resolution 20, 36, 60, 100, 200, 300, 360, 400, 500, 600, 800, 1000, 1024, 1200 (Customizable)
Supply Voltage DC5V; DC8-26V
Output Form Voltage Output
Open Collector
Output Signal Output of Phase A (one - way)
90° Phase - shifted A & B Signals
Z signal
Maximum Speed 6000r/min
Maximum Radial/Axial Load 15N/10N
Operating Temperature -20～85℃
Protection Rating RCC: IP54 / DCC: IP65

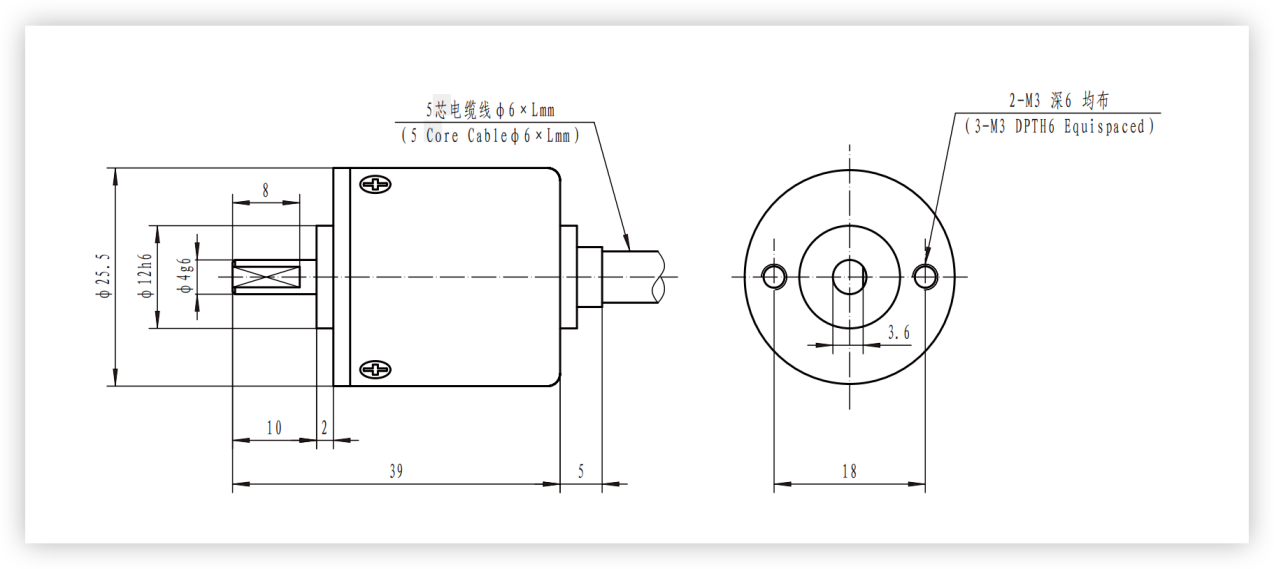

Drawing Dimension Reference：
