Photo-Magnetic encoder - Split RAMR47

Split Reflective Absolute Photo-Magnetic Encoder OD47mm

Email:

Inquire Now
File Download

 Contact US !

View similar products

Absolute Encoder

Tag list

Photoelectric encoder

  • Detailed

  •

    Model

    RAMR47 Absolute Photoelectric Reflective Split-type

    Outer Diameter

    ∅47mm

    Shaft Diameter

    φ8mm

    Supply Voltage

    5V±0.25

    Battery Voltage

    3.6V

    Communication Interface

    RS485

    Baud rate

    2.5MHz (Optional for Mass Production)

    Update Rate

    16K

    Communication Protocol

    Timed Transmission

    Communication Code System

    Positive Logic Binary Code

    Resolution-Single-Turn

    17bit (23bit Optional)

    Resolution-Multi-Turn

    16bit

    Operating Speed

    ≤6000rpm



    Drawing Dimension Reference：



    Mechanical Dimension Drawing

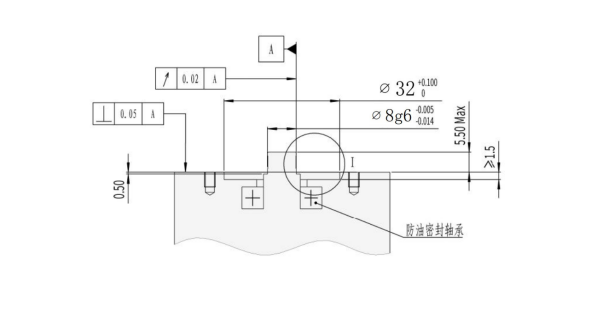

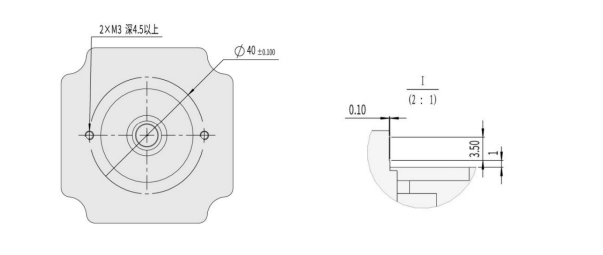

    Motor End Design Dimensions
