Incremental Encoder RCC18S

Email:

vincyliu@roundss.com.cn

adacui@roundss.com.cn

Inquire Now

File Download

Contact US !

View similar products

Solid Shaft Encoder

Tag list

Detailed

Model	RCC18S2.5
Product Type	Solid-shaft Incremental Encoder
Outer Diameter	18mm
Shaft Diameter	2.5mm（Solid Shaft）
Resolution	100, 160, 200, 300, 360, 400, 500, 512 (Customizable)
Supply Voltage	DC5V
Output Form	Voltage Output
Output Signal	Output of Phase A (one - way)
	90° Phase - shifted A & B Signals
	Z signal
Maximum Speed	6000r/min
Maximum Radial/Axial Load	2.94N/4.9N
Operating Temperature	-20～85℃
Protection Rating	IP50

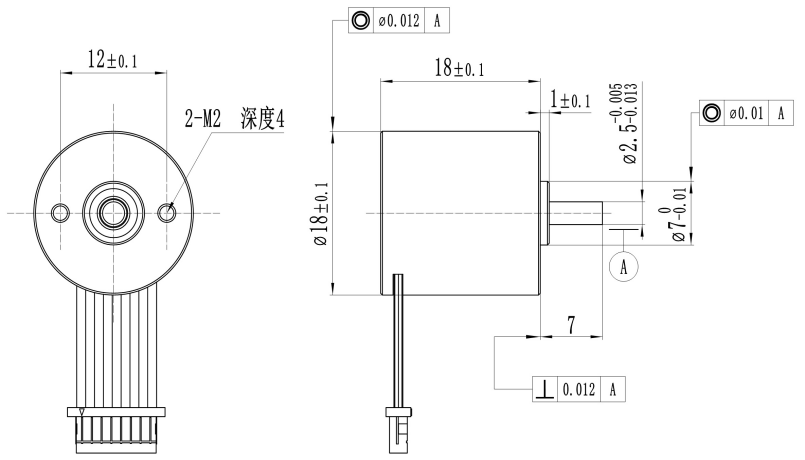

Drawing Dimension Reference：
