Magnetic encoder-Intergrated RAM48

Integrated Absolute Magnetoelectric Encoder OD48mm

Email:

Inquire Now
File Download

 Contact US !

View similar products

Absolute Encoder

Tag list

Magnetic encoder

  • Detailed

  •

    Model

    RAM48 Absolute Magnetic-Electric Integrated Encoder

    Outer Diameter

    ∅48mm

    Shaft Diameter

    φ6mm；φ8mm

    Supply Voltage

    5V±0.25

    Battery Voltage

    3.6V

    Plate Spring

    Models A, B, C, D available (refer to the catalog)

    Communication Interface

    RS485

    Baud Rate

    2.5MHz (Optional for Mass Production)

    Update Rate

    16K

    Communication Protocol

    Timed Transmission

    Communication Code System

    Positive Logic Binary Code

    Resolution-Single-Turn

    17bit

    Resolution-Multi-Turn

    16bit

    Operating Speed

    Default: 6000rpm;  High Speed (8000rpm)



    Drawing Dimension Reference：

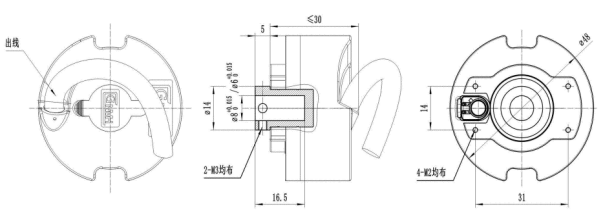

    Dimensions of G - type Outlet

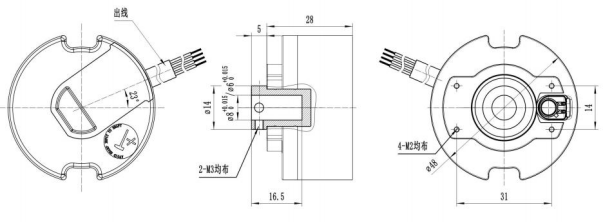

    Dimensions of L - type Outlet
