  • Detailed

  • Basic Information

    Model

    RAA25S4

    Product Type

    Photoelectric Single - turn Encoder

    Mechanical Parameters

    Outer Diameter

    25mm

    Shaft Diameter

    4mm （Solid Shaft）

    Maximum Speed

    1000r/min

    Shaft Load

    Radial (≤20N) ; Axial (≤10N)

    Electrical Parameters

    Resolution

    10-16bit (Single - turn)

    Supply Voltage

    DC5V

    Output Code

    Binary Code / Gray Code

    Environmental Parameters

    Operating Temperature

    -40~65℃

    Protection Rating

    IP65

    Asynchronous Serial

    Communication Protocol

    RS422 / RS485 / RS232

    Communication Interface

    Timed Transmission; Timed + Clear; Pulse Handshake; Handshake + Clear; Bus Command; Bus + Clear; MODBUS

    Baud Rate

    115200 / 57600 / 38400 / 19200 / 9600 / 4800

    Update Rate (Hz)

    2000 / 1000 / 500 / 400 / 200 / 100 / 50 / 20

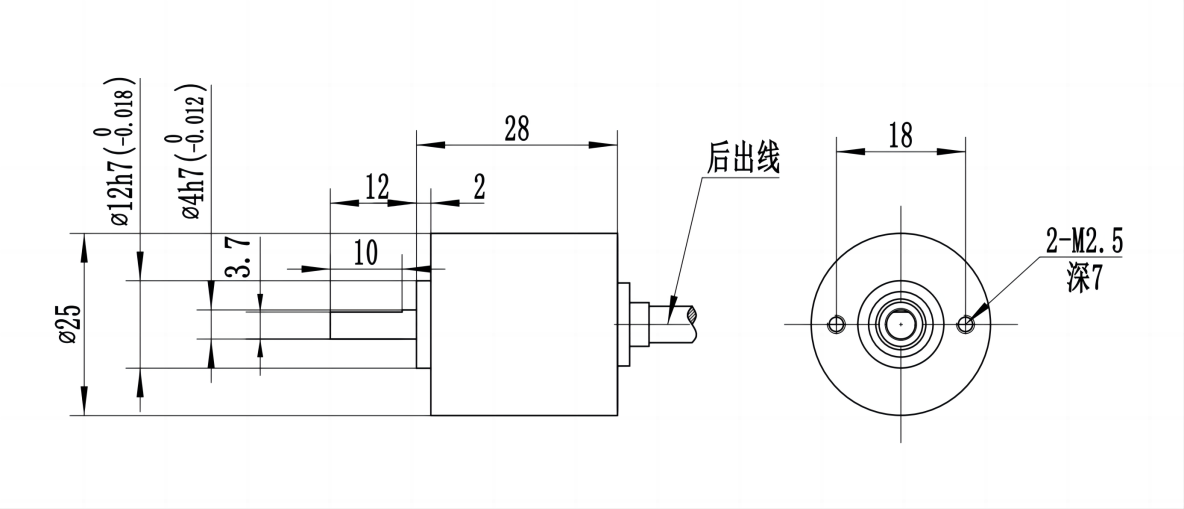

    Drawing Dimension Reference：
