Photoelectric encoder - Overall RAA50.1C10
View similar products
Tag list
- Detailed
-
Model
Basic：RAA50.1C10; With Temp Sensor: RTA50.1C10
Outer Diameter
∅50mm
Shaft Diameter
φ10 Cross Shaft Coupling
Supply Voltage
5V±0.25
Battery Voltage
3.6V
Plate Spring
Models A available (refer to the catalog)
Communication Interface
RS485 (RSS232, SSI, BISS Optional)
Baud rate
2.5MHz ；5MHz (Optional for Mass Production)
Update Rate
16K
Communication Protocol
Timed Transmission
Communication Code System
Positive Logic Binary Code
Resolution-Single-Turn
23bit (17bit, 25bit, 26bit Optional)
Resolution-Multi-Turn
16bit
Accuracy
Default 40″±10；High Accuracy（≤20″）
Operating Speed
Default ≤6000rpm; High Speed (6000 - 12000rpm)
Operating Temperature
-20°-100°
Operating Humidity
＜90% RH（no condensation）
Protection Class
IP65 (motor end cover seal protection）
Drawing Dimension Reference：

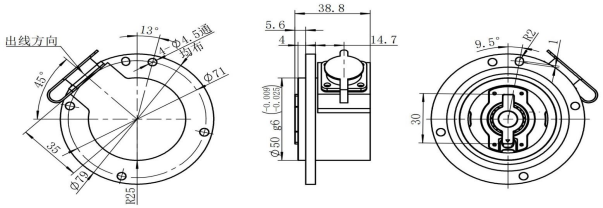

Dimensions of Cable Outlet
Dimensions of Plug Outlet

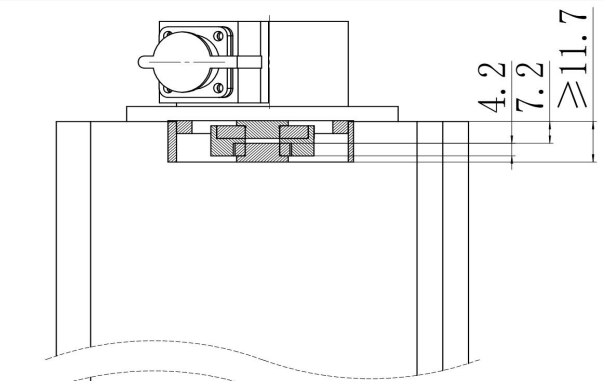

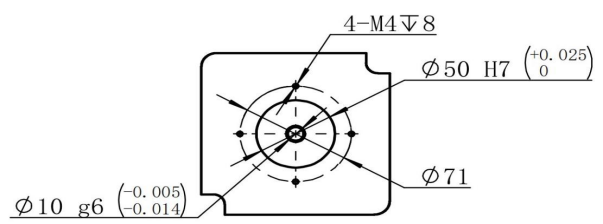

Motor End Design Dimensions
