Incremental Encoder RCC30S
View similar products
Tag list
- Detailed
-
• The RCC30S is widely used in automatic control, automatic measurement
• As a sensor for measuring corner and speed.
• Small size, light weight, excellent performance, suitable for narrow space applications.
• Compact size and resolution up to 1200 pulses.
Model RCC30S4; DCC30S4 Product Type Solid-shaft Incremental Encoder
RCC: Common / DCC: Reinforced

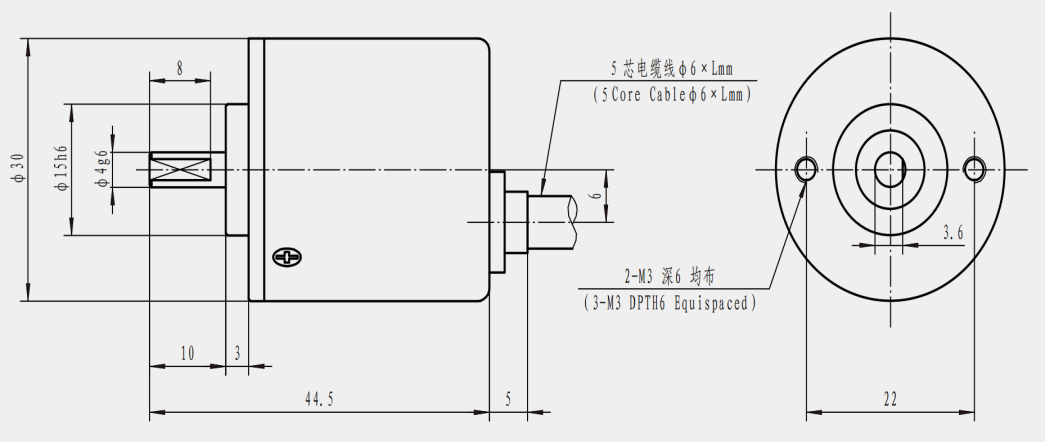

Outer Diameter 30mm Shaft Diameter 4mm（Solid Shaft） Resolution 20, 36, 60, 100, 200, 300, 360, 400, 500, 600, 800, 1000, 1024, 1200 (Customizable) Supply Voltage DC5V; DC8-26V Output Form Voltage Output Open Collector Output Signal Output of Phase A (one - way) 90° Phase - shifted A & B Signals Z signal Maximum Speed 6000r/min Maximum Radial/Axial Load 15N/10N Operating Temperature -20～85℃ Protection Rating RCC: IP54 / DCC: IP65 Drawing Dimension Reference：
