Magnetic encoder-Split SAM20

Split Absolute Magnetoelectric Encoder

Email:

Inquire Now
File Download

 Contact US !

View similar products

Absolute Encoder

Tag list

Magnetic encoder

  • Detailed

  •

    Model

    SAM20 Absolute Value Magnetic-Electric Split-type

    Dimensions

    20.9mm*20.9mm

    Supply Voltage

    5V±0.25

    Battery Voltage

    3.6V

    Communication Interface

    RS485

    Baud rate

    2.5MHz (Optional for Mass Production)

    Update Rate

    16K

    Communication Protocol

    Timed Transmission

    Communication code system

    Positive Logic Binary Code

    Resolution-Single-turn

    17bit/23bit

    Resolution-Multi-turn

    16bit

    Operating Speed

    ≤6000rpm

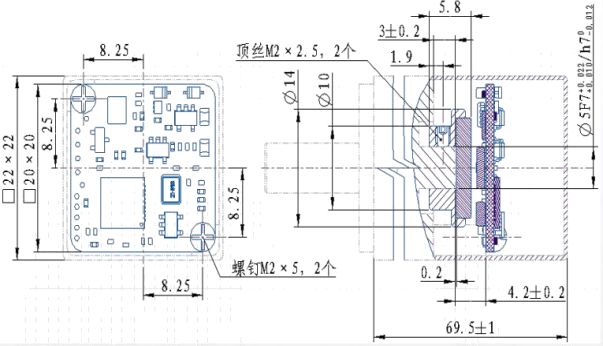

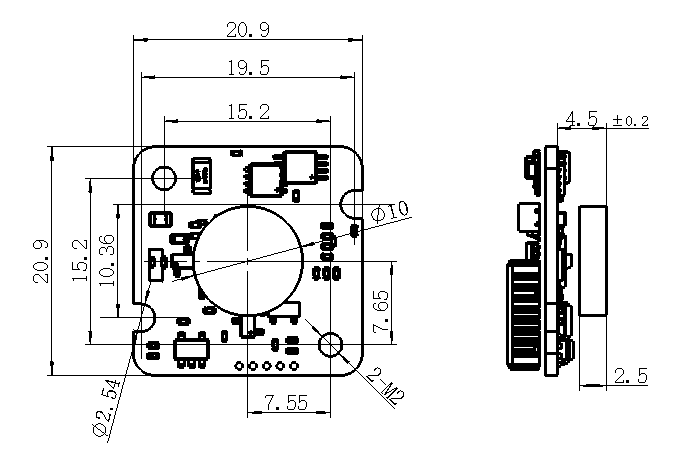

    Drawing Dimension Reference：
