  • Detailed

  • The RLC series optical linear scales are characterized by high accuracy and consistent reliability. Owingto their reduced dimensions, they are applicable even to small-sized machine tools such as millers.lathes, grinders, and spark erosion machines. The sealed sensor design ensures reliable operationaperformance and facilitates straightforward installation, boasting high resolutions up to lum.

    Model

    RLC400 Incremental Enclosed Linear Grating Ruler

    Measurement

    0-1000 mm

    Resolution

    5um / 1um

    Supply Voltage

    5V; 8-26V

    Signal Waveform

    TTL

    Output Signal

    Voltage output; Line Driver output

    Reference Mark

    Every 100mm

    Plug

    9Pins Computer; 7 Pins Aviation

    Operating Temperature

    -20～85℃

    Protection Class

    IP53

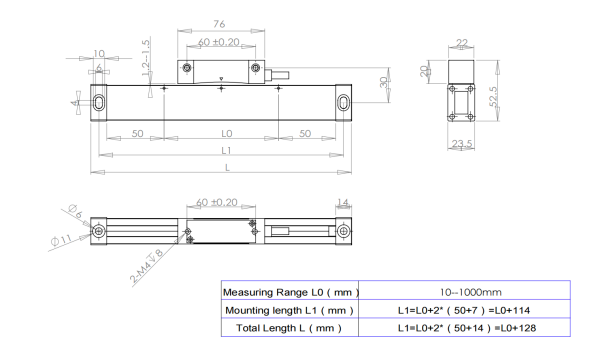

    Drawing Dimension Reference：
