Incremental Encoder RTC58S15
View similar products
Tag list
- Detailed
-
RTC58S15 is widely applied to kinds of machinery and photoelectric
light industry control industry.Multiple output signals are
available, resolution up to 6000ppr,others on request.Optoelectronic
devices with high reliability, long life, strong anti-interference
ability, wide range of operating temperature.Model RTC58S15; DTC58S15 Product Type Solid-shaft Incremental Encoder
RTC: Mainly for machine tool spindle series
DTC: Reinforced
Outer Diameter 58mm Shaft Diameter 15mm（Solid Shaft） Resolution 100, 120, 127, 128, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 640, 720, 800, 900, 960, 1000, 1200, 1250, 1440, 1500, 1600, 1800, 2000, 2048, 2500, 2540, 2560, 3000, 4000, 5000, 6000

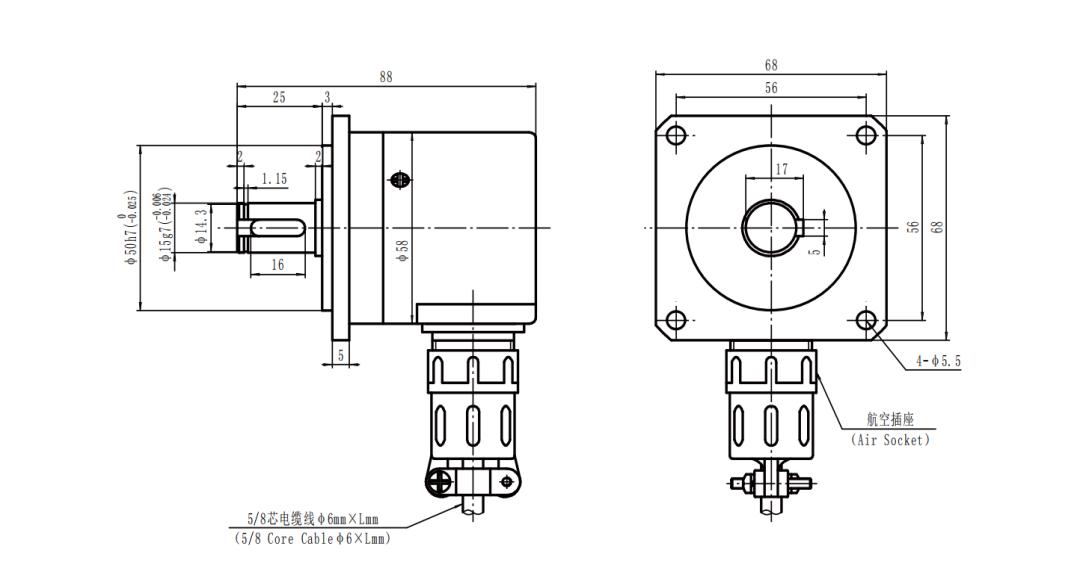

(Customizable)Supply Voltage DC5V; DC8-26V;DC10-30V; DC12V Output Form Voltage Output Complementary Output Open - collector Output Long - line Drive Output Wide - voltage Long - line Output Output Signal Output of Phase A (one - way) 90° Phase - shifted A & B Signals Z signal Maximum Speed 6000r/min Maximum Radial/Axial Load 40N/30N Operating Temperature -20～85℃ Drawing Dimension Reference：
