Coupling RD2-AS
Imported rubber is used, according to different torque, the rubber material is different.
- Detailed
-
Single Diaphragm Clamp Type Coupling
Model
Flange OD (mm)
Shaft Dia Range (mm)
Total Length (mm)
Max Torque (N·m)
Max Speed (min⁻¹)
RD2 - 34AS
34
5～10
27.3
4
18000
RD2 - 39AS
39
7～13
34
6
16000
RD2 - 44AS
44
8～15
34
10
14000
RD2 - 56AS
56
10～20
43.4
25
11000
RD2 - 68AS
68
12～25
53.6
60
9000
RD2 - 82AS
82
20～30
68
100
7000

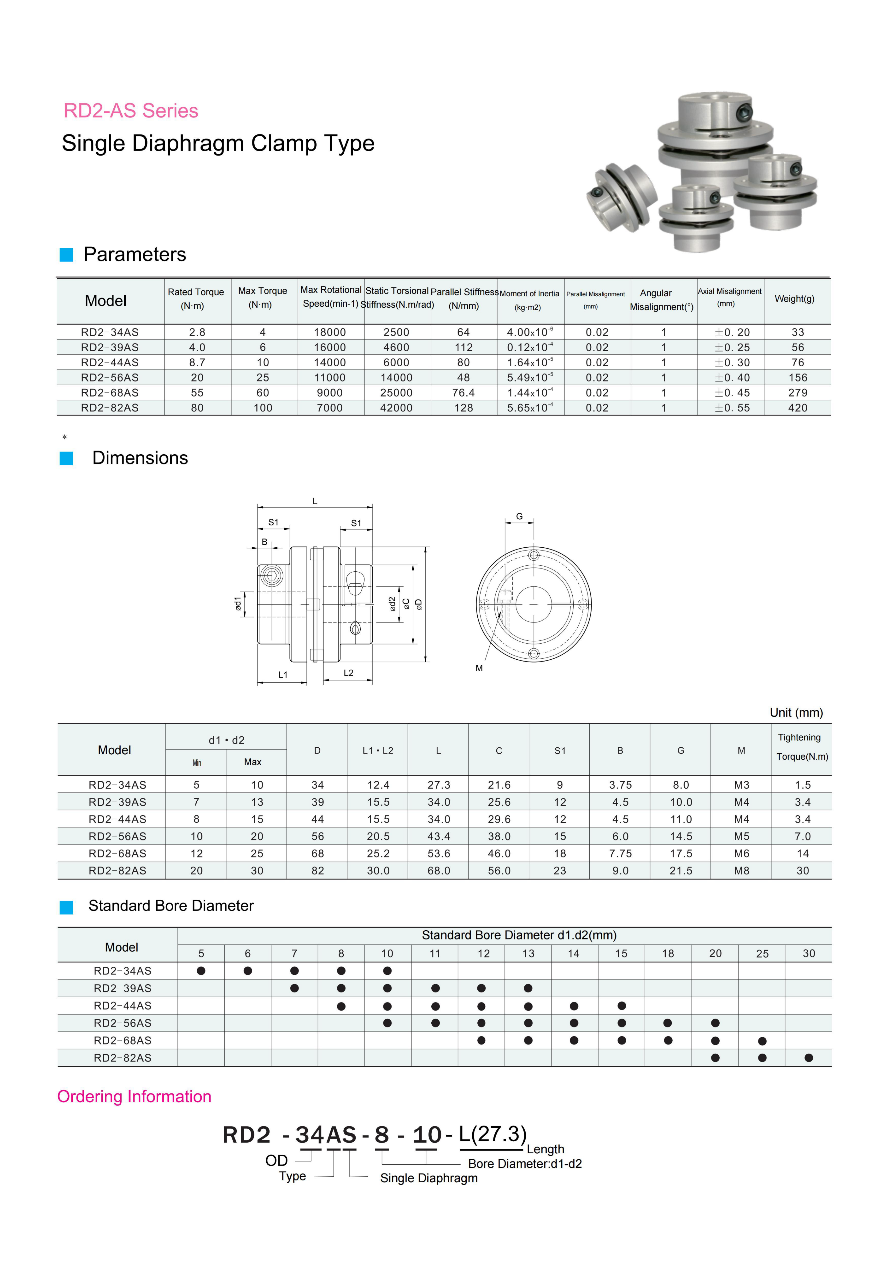

Drawing Dimension Reference：
