Coupling RD2-AD
Imported rubber is used, according to different torque, the rubber material is different.
- Detailed
-
Step - type Double Diaphragm Clamp Coupling
Model
Flange OD (mm)
Shaft Dia Range (mm)
Total Length (mm)
Max Torque (N·m)
Max Speed (min⁻¹)
RD2 - 34AD
34
5~10
37.8
4
18000
RD2 - 39AD
39
7~13
48
6
16000
RD2 - 44AD
44
8~15
48
10
14000
RD2 - 56AD
56
10~20
59.8
25
11000
RD2 - 68AD
68
12~25
73.3
60
9000
RD2 - 82AD
82
20~30
98
100
7000

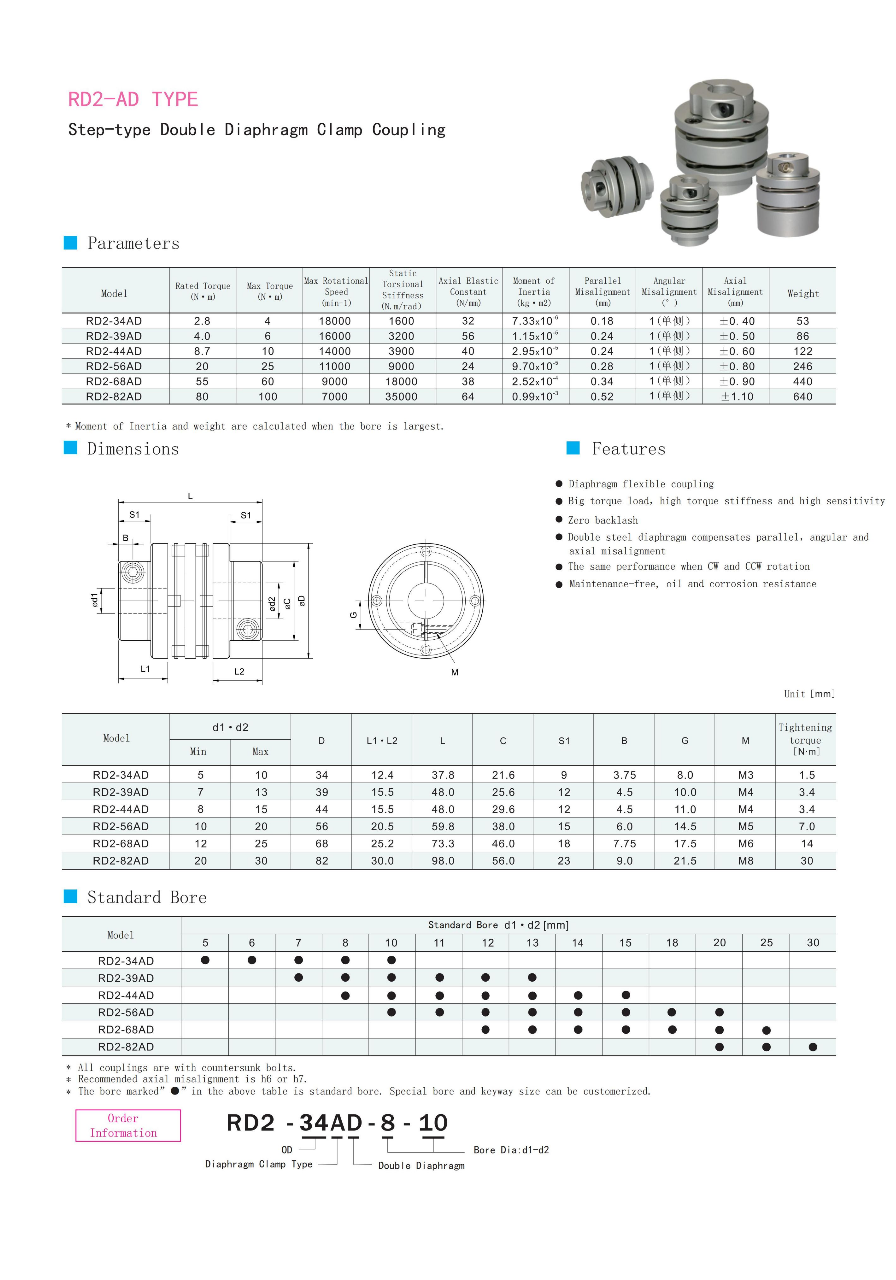

Drawing Dimension Reference:
