Coupling RD2-BS

Imported rubber is used, according to different torque, the rubber material is different.

Email:

vincyliu@roundss.com.cn

adacui@roundss.com.cn

Inquire Now

File Download

Contact US !

View similar products

Coupling

Tag list

Coupling

Detailed

Single Diaphragm Clamp Coupling
Model	Flange OD (mm)	Shaft Dia Range (mm)	Total Length (mm)	Max Torque (N·m)	Max Speed (min⁻¹)
RD2 - 26BS	26	5～10	23.15	2.8	24000
RD2 - 34BS	34	8～14	27.3	4	18000
RD2 - 39BS	39	10～16	34	6	16000
RD2 - 44BS	44	10～19	34	10	14000
RD2 - 56BS	56	14～25	43.4	25	11000
RD2 - 68BS	68	19～35	53.6	60	9000
RD2 - 82BS	82	24～40	68	100	7000
RD2 - 94BS	94	30～45	68.3	180	6000

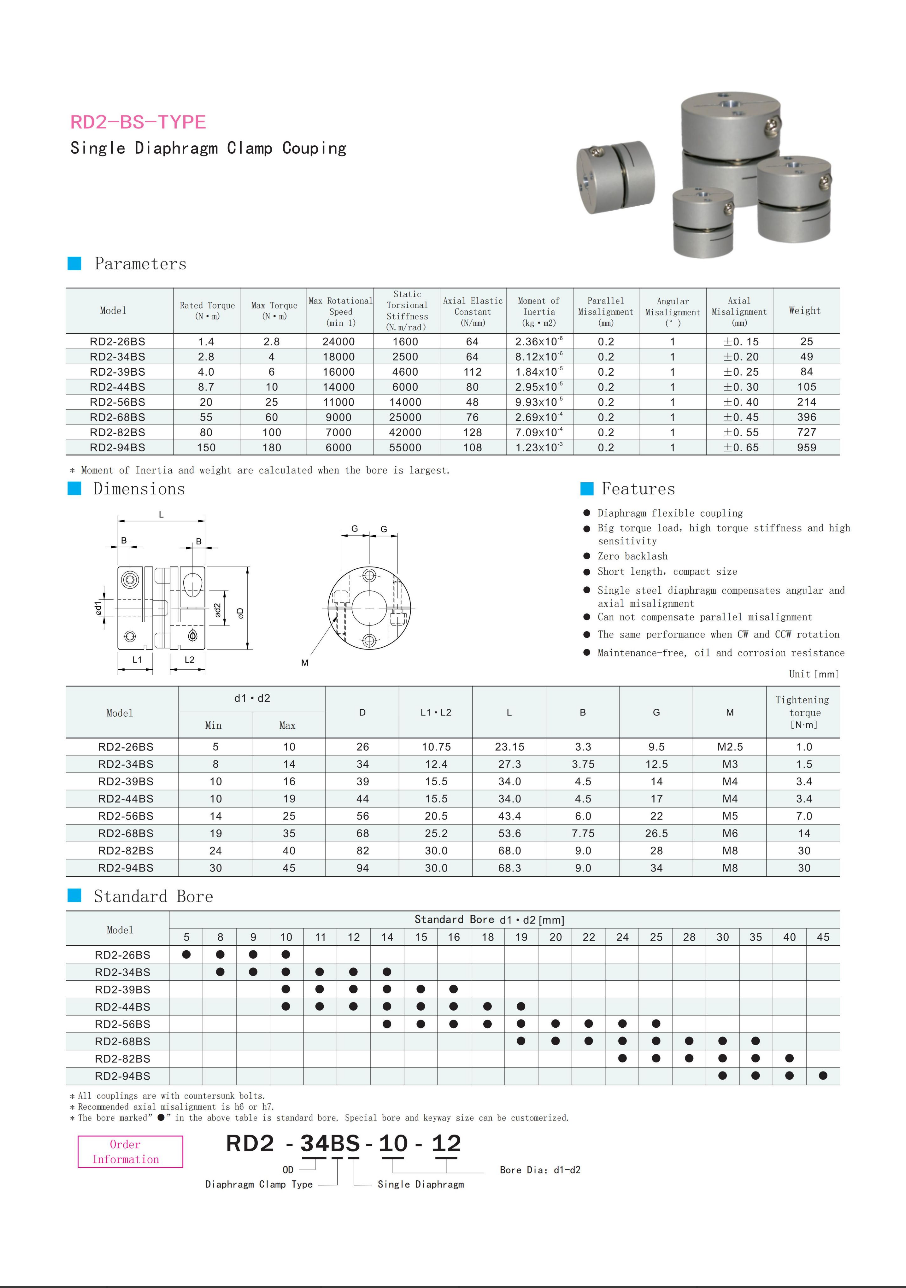

Drawing Dimension Reference：

Coupling RD2-BD

Coupling RD2-AD

Coupling RD2-BS

Imported rubber is used, according to different torque, the rubber material is different.
