Coupling RD2-BD

Imported rubber is used, according to different torque, the rubber material is different.

Email:

vincyliu@roundss.com.cn

adacui@roundss.com.cn

Inquire Now

File Download

Contact US !

View similar products

Coupling

Tag list

Coupling

Detailed

Double Read Type Coupling
Model	Flange OD (mm)	Shaft Dia Range (mm)	Total Length (mm)	Max Torque (N·m)	Max Speed (min⁻¹)
RD2 - 26BD	26	5～10	32.3	2.8	24000
RD2 - 34BD	34	8～14	37.8	4	18000
RD2 - 39BD	39	10～16	48	6	16000
RD2 - 44BD	44	10～19	48	10	14000
RD2 - 56BD	56	14～25	59.8	25	11000
RD2 - 68BD	68	19～35	73.3	60	9000
RD2 - 82BD	82	24～40	98	100	7000
RD2 - 94BD	94	30～45	98.6	180	6000

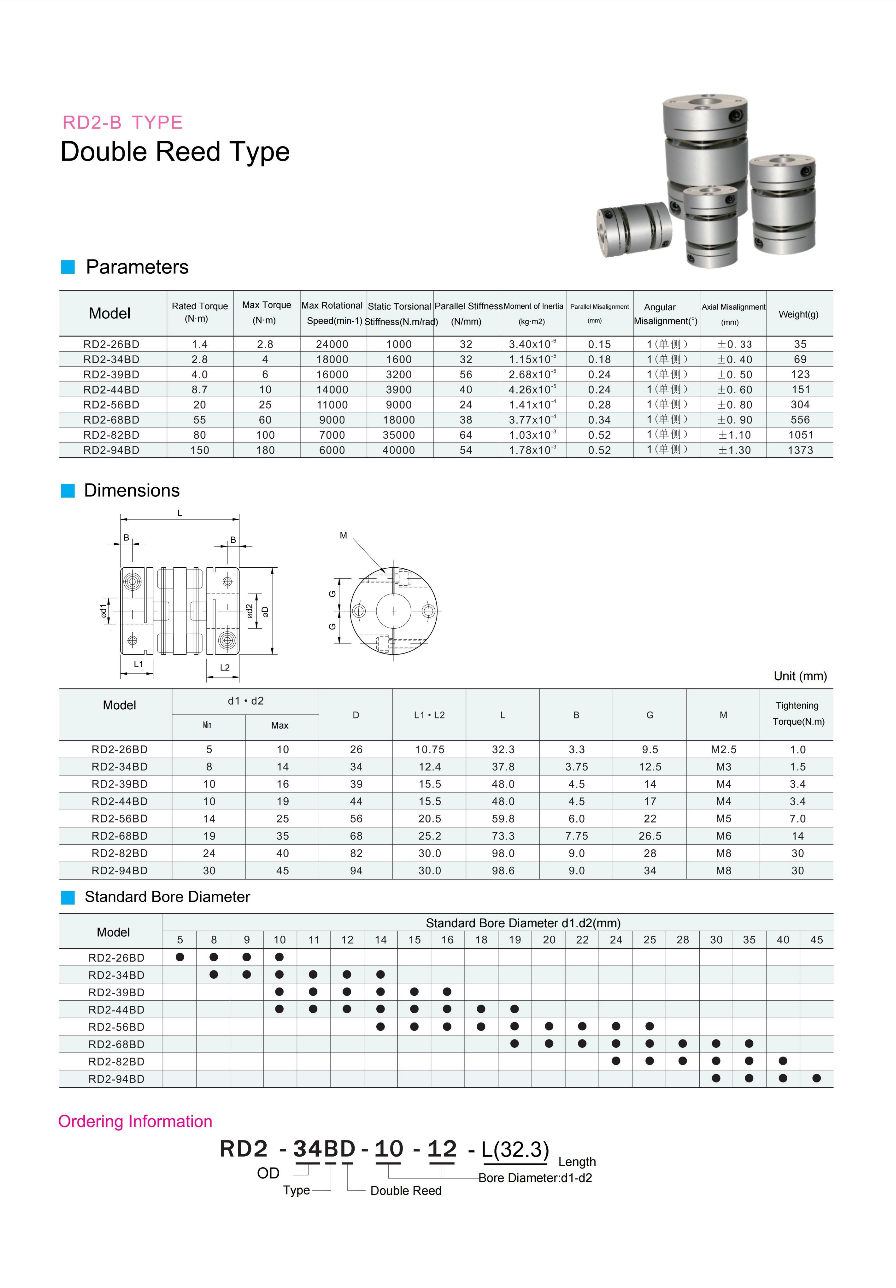

Drawing Dimension Reference：
