• Coupling RD3-A
Coupling RD3-A
+

Share to

Coupling RD3-A

Imported rubber is used, according to different torque, the rubber material is different.

Email:

Inquire Now
File Download

 Contact US !

View similar products

Coupling

Tag list

Coupling

  • Detailed

  • Single-wall Bellows Coupling

    Model

    Flange OD (mm)

    Shaft Dia Range (mm)

    Total Length (mm)

    Max Torque (N·m)

    Max Speed (min⁻¹)

    RD3 - 16AS

    16

    4～8

    26.5

    2

    39000

    RD3 - 20AS

    20

    5～10

    32

    3

    31000

    RD3 - 25AS

    25

    6～12

    36.5

    4

    25000

    RD3 - 32AS

    32

    6～14

    42

    6

    19000

    RD3 - 12AC

    12

    4～5

    23.5

    1

    52000

    RD3 - 16AC

    16

    5～6

    26.5

    2

    39000

    RD3 - 20AC

    20

    6～8

    32

    3

    31000

    RD3 - 25AC

    25

    8～10

    36.5

    4

    25000

    RD3 - 32AC

    32

    8～14

    42

    6

    19000

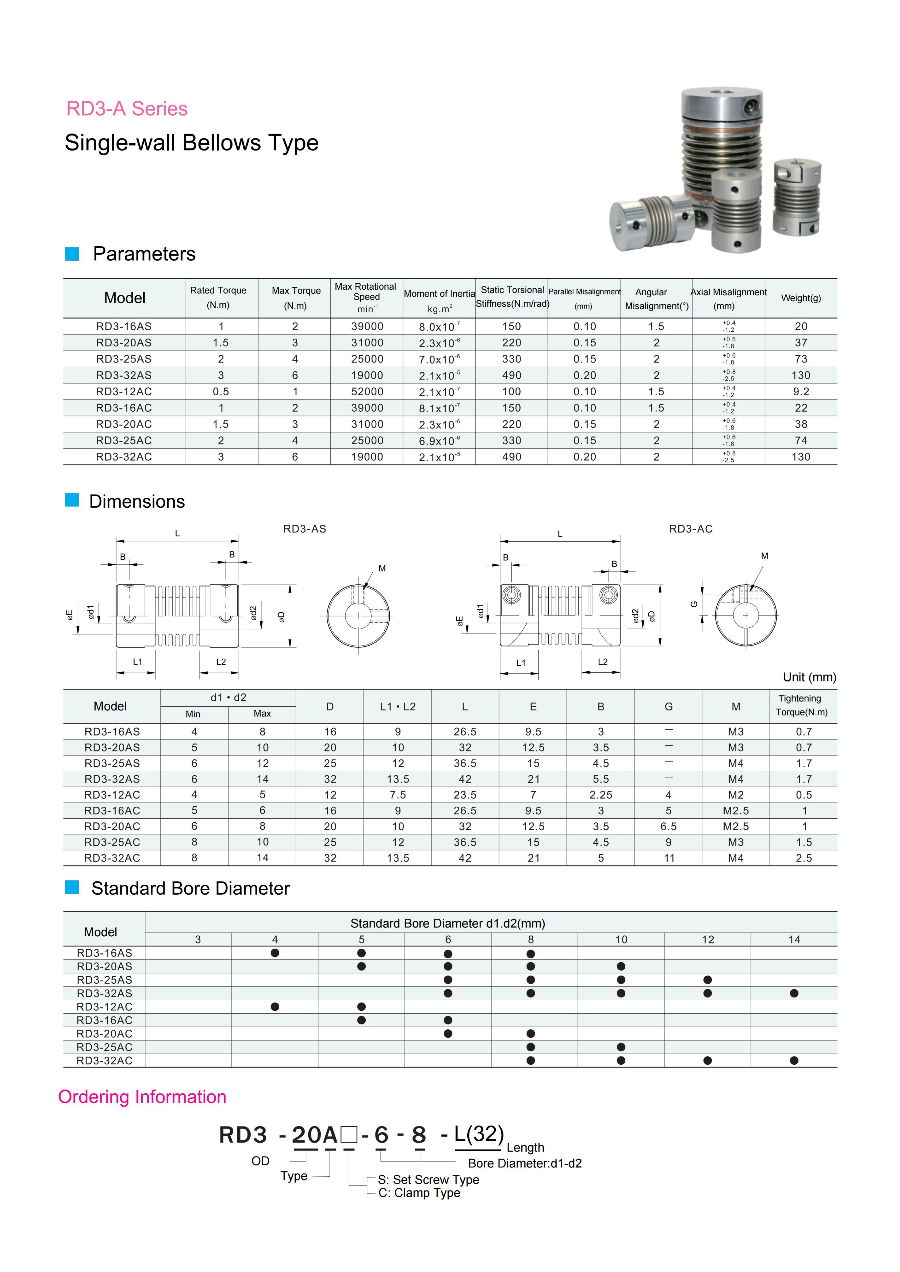

    Drawing Dimension Reference：
