Coupling RD3-BC

Imported rubber is used, according to different torque, the rubber material is different.

Email:

Inquire Now
File Download

 Contact US !

View similar products

Coupling

Tag list

Coupling

  • Detailed

  • Double - wall Bellows Clamp Type Coupling

    Model

    Flange OD (mm)

    Shaft Dia Range (mm)

    Total Length (mm)

    Max Torque (N·m)

    Max Speed (min⁻¹)

    RD3 - 17BC

    16.5

    3～6

    31.5

    1.8

    20000

    RD3 - 25BC

    24.5

    6～10

    42

    4

    12000

    RD3 - 40BC

    39.5

    10～19

    62

    24

    12000

    RD3 - 56BC

    56

    12～30

    70

    40

    10000

    RD3 - 63BC

    63

    20～30

    77

    120

    8000

    RD3 - 80BC

    79.5

    30～43

    92

    250

    8000

    RD3 - 99BC

    99

    30～54

    100

    400

    8000

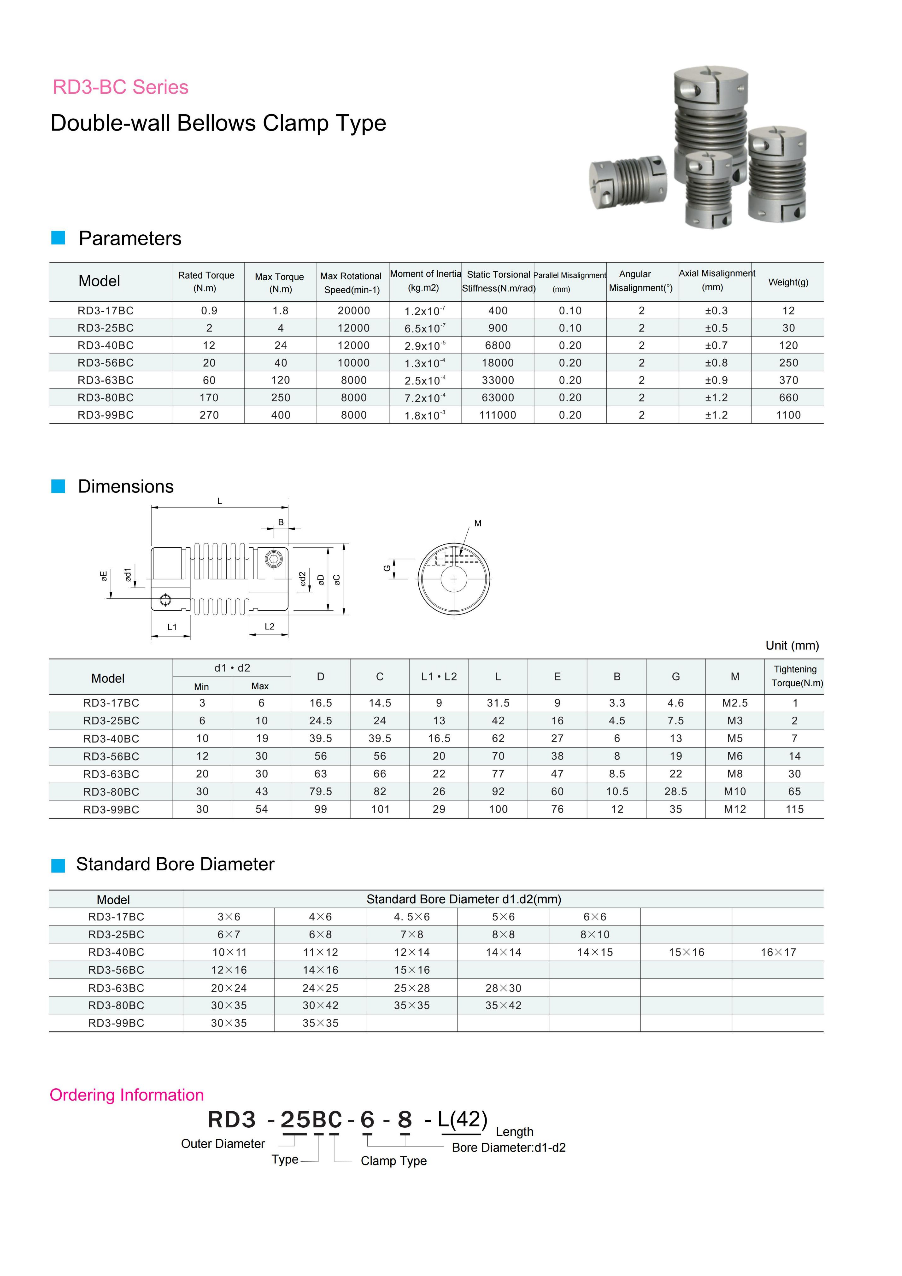

    Drawing Dimension Reference：
