Coupling RD4-S
- Detailed
-
Helical Screw Coupling
Model
Flange OD (mm)
Shaft Dia Range (mm)
Total Length (mm)
Max Torque (N·m)
Max Speed (min⁻¹)
RD4 - 16S
16
3～6.35
22
0.8
10000
RD4 - 20S
20
4～8
25
1.4
9000
RD4 - 25S
25
5～12
30
2.4
8000
RD4 - 32S
32
6～15
38
4
7000
RD4 - 42S
42
10～20
45
9.6
6000
RD4 - 48S
48
12～25
54
16.4
4000
RD4 - 19SS
19.1
3～6.35
19.1
2
10000
RD4 - 25SS
25.4
5～10
25.4
4.4
10000
RD4 - 29SS
28.6
6～12.7
28.6
6.2
8000
RD4 - 38SS
38.1
8～15
38.1
15
8000
RD4 - 51SS
50.8
12～19
50.8
28
6000

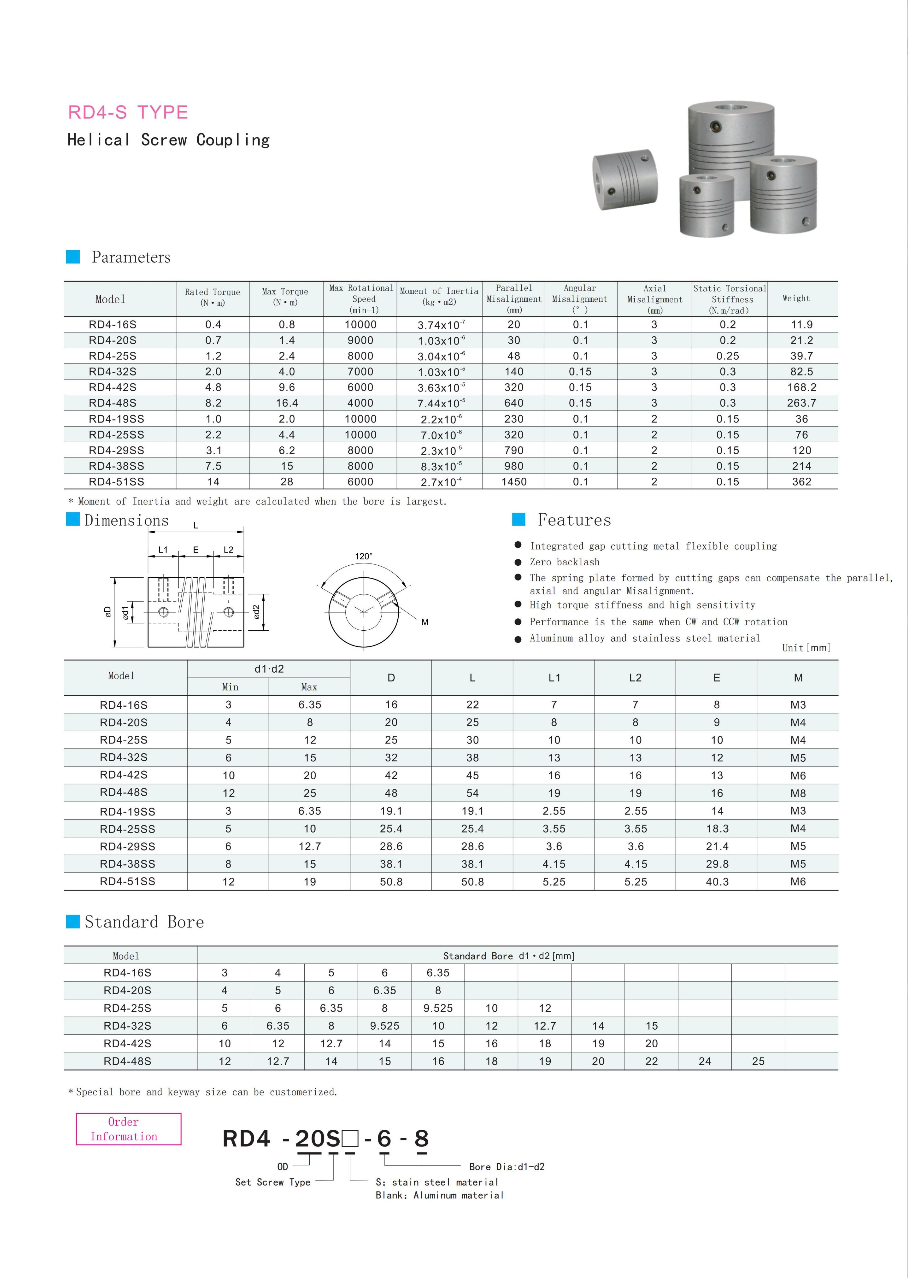

Drawing Dimension Reference：
