Coupling RD4-C
- Detailed
-
Single Diaphragm Clamp Coupling
Model
Flange OD (mm)
Shaft Dia Range (mm)
Total Length (mm)
Max Torque (N·m)
Max Speed (min⁻¹)
RD4 - 16C
16
3～6.35
22
0.8
10000
RD4 - 20C
20
4～8
25
1.4
9000
RD4 - 25C
25
5～12
30
2.4
8000
RD4 - 32C
32
6～15
38
4
7000
RD4 - 42C
42
10～20
45
9.6
6000
RD4 - 48C
48
12～25
54
16.4
4000
RD4 - 19CS
19.1
3～6.35
22.9
2
8000
RD4 - 25CS
25.4
5～10
31.8
4.4
6000
RD4 - 29CS
28.6
6～12.7
38.1
6.2
5000
RD4 - 38CS
38.1
8～15
41.3
15
4500
RD4 - 51CS
50.8
12～19
51
28
4500

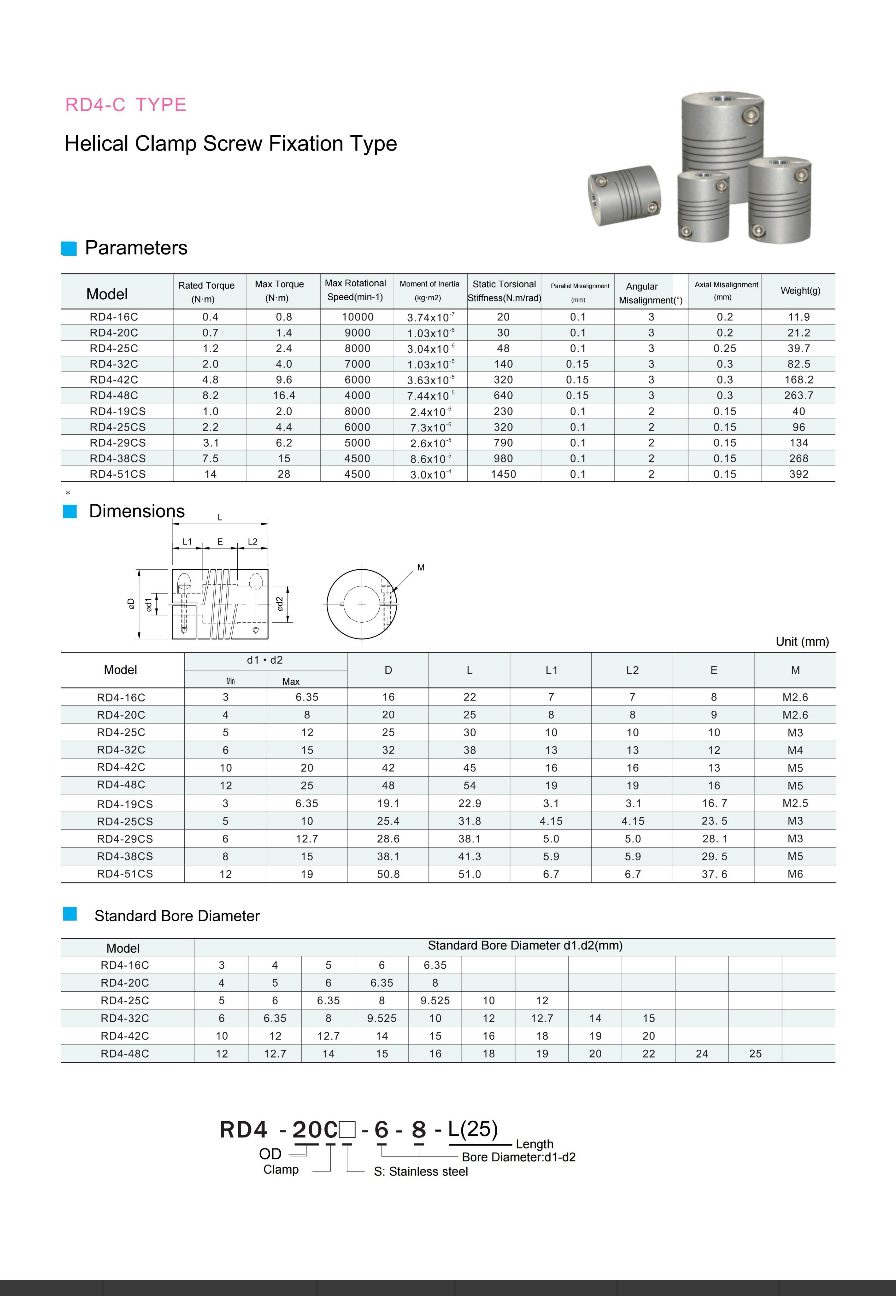

Drawing Dimension Reference：
