Hollow Shaft Encoder RAA58B20
View similar products
Tag list
- Detailed
-
RAA58B photoelectric absolute encoder is a shaft sleeve encoder .
RS485, RS422, RS232, SSI, BISS-C, CANOPEN interfaces are available.
RS485 is an absolute encoder suitable for radar antenna, rotary head, automation control, high precision positioning, and is a very cost-effective encoder.
Aperture can be customized, small photoelectric encoder high-precision ultra-thin products.
Basic Information Model RAA58B20; RAM58B20 Product Type RAA: Absolute Photoelectric Encoder
RAM: Absolute Magnetoelectric Encoder

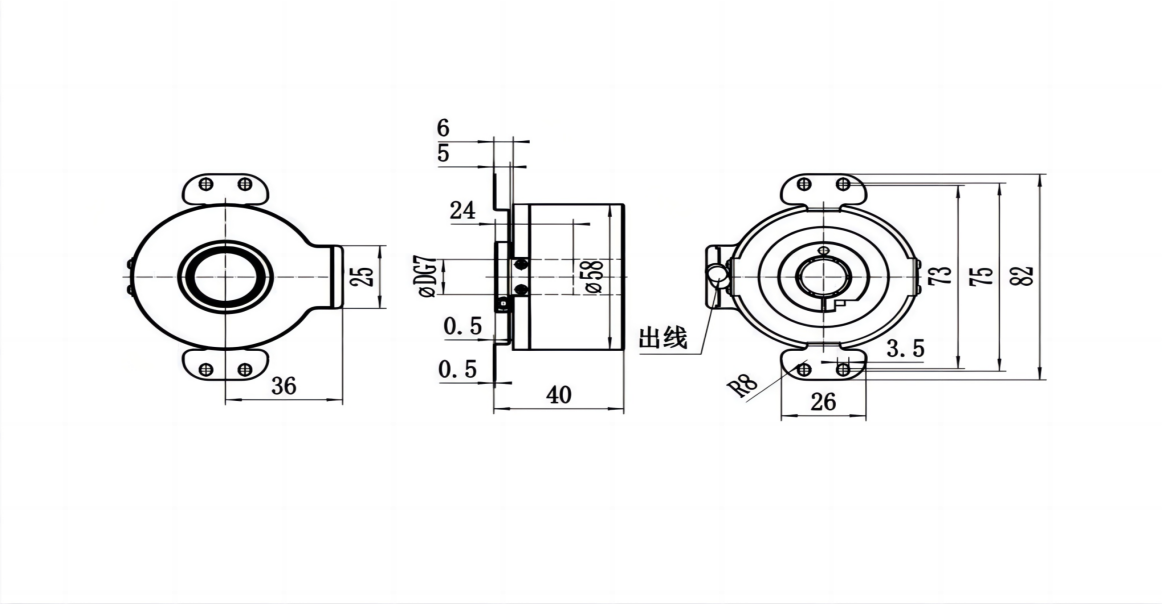

Mechanical Parameters Outer Diameter 58mm Shaft Diameter 20mm （Hollow Shaft） Maximum Speed 3000 r/min Shaft Load Radial (≤20N) ; Axial (≤10N) Electrical Parameters Resolution 13 - bit Single - turn; 12 - bit Multi - turn Supply Voltage DC5V / DC10-30V Output Code Binary Code / Gray Code Environmental Parameters Operating Temperature -25~85℃ Protection Rating IP54 Asynchronous Serial Communication Protocol RS422 / RS485 / RS232 Communication Interface Timed Transmission; Timed + Clear; Pulse Handshake; Handshake + Clear; Bus Command; Bus + Clear; MODBUS Baud Rate 115200 / 57600 / 38400 / 19200 / 9600 / 4800 Update Rate (Hz) 2000 / 1000 / 500 / 400 / 200 / 100 Synchronous Serial Communication Protocol SSI / CANopen / BiSS - C Drawing Dimension Reference：
