Hollow Shaft Encoder RAA80B25

Large hollow shaft, industrial standards.

View similar products

  • Detailed
  • Appearance:

    • Outer housing color: black.
    • Surface treatment: painting.
    • Connection: radial cable.
    • Cable length: 1M (customized).
    • Cable color: black, gray (optional).



    Features:

    • Large hollow shaft, industrial standards.
    • High sealing, high protection encoder.
    • Available for achieving a variety of communication protocols.
    • Dustproof, moistureproof, shock resistence, vibration, long life, anti-interference.G:Radial CableE:Axial Cable.
    • Wide temperature range, suitable for all kinds of environments.

    Basic Information

    Model

    RAA80B25

    Product Type

    Photoelectric Single - turn Encoder

    Mechanical Parameters

    Outer Diameter

    80mm

    Shaft Diameter

    25mm (Hollow Shaft)

    Maximum Speed

    3000 r/min

    Shaft Load

    Radial (≤20N) ; Axial (≤10N)

    Electrical Parameters

    Resolution

    12-20 bit Single - turn; 2-16 bit Multi - turn

    Supply Voltage

    DC5V / DC10-30V

    Output Code

    Binary Code / Gray Code

    Environmental Parameters

    Operating Temperature

    -40~65℃

    Protection Rating

    IP64

    Asynchronous Serial

    Communication Protocol

    RS422 / RS485 / RS232

    Communication Interface

    Timed Transmission; Timed + Clear; Pulse Handshake; Handshake + Clear; Bus Command; Bus + Clear; MODBUS

    Baud Rate

    115200 / 57600 / 38400 / 19200 / 9600 / 4800

    Update Rate (Hz)

    2000 / 1000 / 500 / 400 / 200 / 100 / 50 / 20

    Synchronous Serial

    Communication Protocol

    SSI / CANopen / BiSS - C

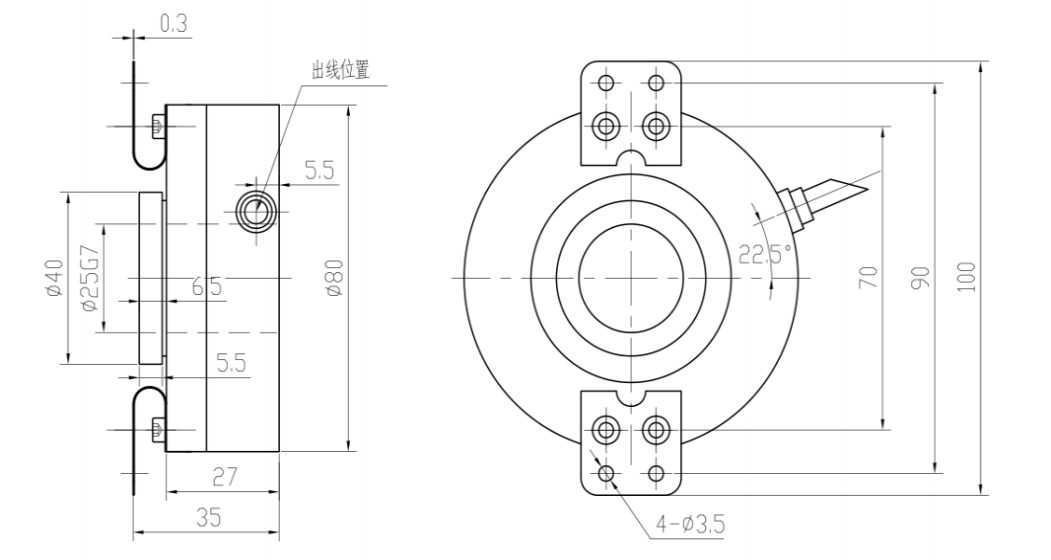

    Drawing Dimension Reference:
