Hollow Shaft Encoder RAA94B30
View similar products
Tag list
- Detailed
-
RAA94B photoelectric absolute encoder is a shaft sleeve encoder .
RS485, RS422, RS232, SSI, BISS-C, CANOPEN interfaces are available.
RS485 is an absolute encoder suitable for radar antenna, rotary head, automation control, high precision positioning, and is a very cost-effective encoder.
Aperture can be customized, high-precision absolute encoder with large aperture.

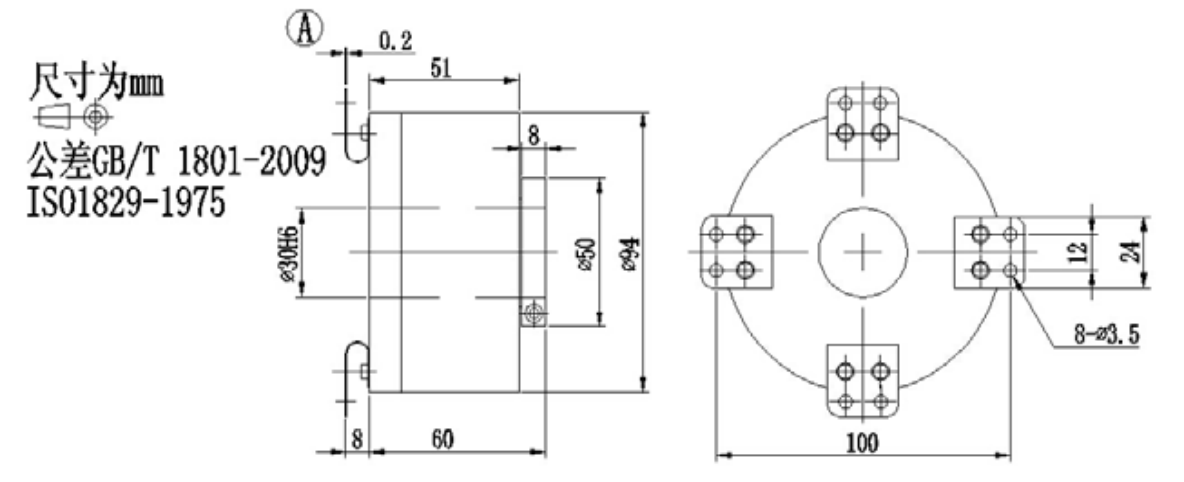

Basic Information Model RAA94B30 Product Type Photoelectric Single - turn Encoder Mechanical Parameters Outer Diameter 94mm Shaft Diameter 30mm （Hollow Shaft） Maximum Speed 3000 r/min Shaft Load Radial (≤20N) ; Axial (≤10N) Electrical Parameters Resolution 12-20 bit Single - turn; 2-16 bit Multi - turn Supply Voltage DC5V / DC10-30V Output Code Binary Code / Gray Code Environmental Parameters Operating Temperature -40~65℃ Protection Rating IP64 Asynchronous Serial Communication Protocol RS422 / RS485 / RS232 Communication Interface Timed Transmission; Timed + Clear; Pulse Handshake; Handshake + Clear; Bus Command; Bus + Clear; MODBUS Baud Rate 115200 / 57600 / 38400 / 19200 / 9600 / 4800 Update Rate (Hz) 2000 / 1000 / 500 / 400 / 200 / 100 / 50 / 20 Synchronous Serial Communication Protocol SSI / CANopen / BiSS - C Drawing Dimension Reference：
