Solid Shaft Encoder RAA58S10
View similar products
Tag list
- Detailed
-
RAA58S10 photoelectric absolute encoder is a shaft-out type.
RS485, RS422, RS232, SSI, BISS-C, CANOPEN interfaces can be selected.
It is an encoder for radar antenna, rotary head, automation control, high-precision positioning, and is a very cost-effective absolute encoder.
Can do photoelectric mechanical multi-turn, also can do magneto-electric mechanical multi-turn, after power down can realize manual rotation, from now on no longer lose data.

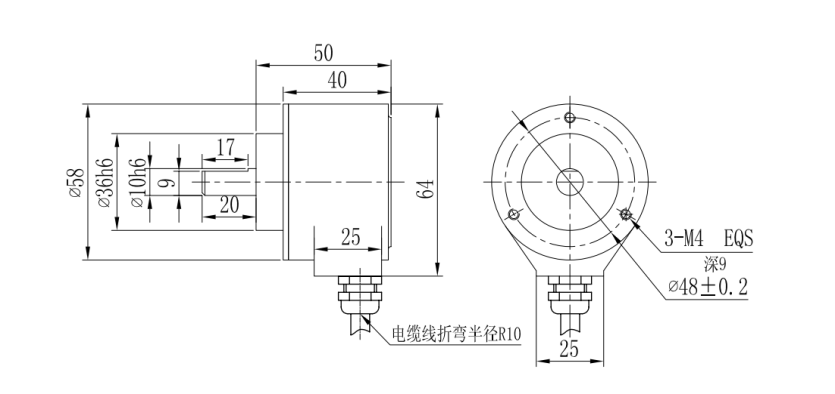

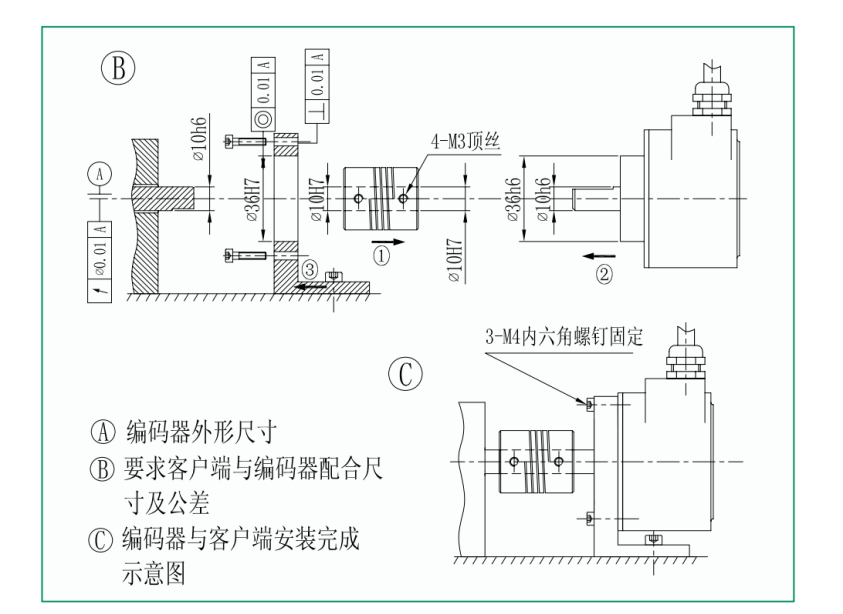

Basic Information Model RAA58S10 Product Type Photoelectric Single - turn Encoder Mechanical Parameters Outer Diameter 58mm Shaft Diameter 10mm （Solid Shaft） Maximum Speed 5000r/min Shaft Load Radial (≤20N) ; Axial (≤10N) Electrical Parameters Resolution 10-21bit Supply Voltage DC5V±5% / DC10-30V Output Code Binary Code / Gray Code Environmental Parameters Operating Temperature -40~65℃ Protection Rating IP65 Asynchronous Serial Communication Protocol RS422 / RS485 / RS232 Communication Interface Timed Transmission; Timed + Clear; Pulse Handshake; Handshake + Clear; Bus Command; Bus + Clear; MODBUS Baud Rate 115200 / 57600 / 38400 / 19200 / 9600 / 4800 Update Rate (Hz) 2000 / 1000 / 500 / 400 / 200 / 100 / 50 / 20 Synchronous Serial Communication Protocol SSI / CANopen / BiSS - C Drawing Dimension Reference：
