Solid Shaft Encoder RAA42S6
View similar products
Tag list
- Detailed
-

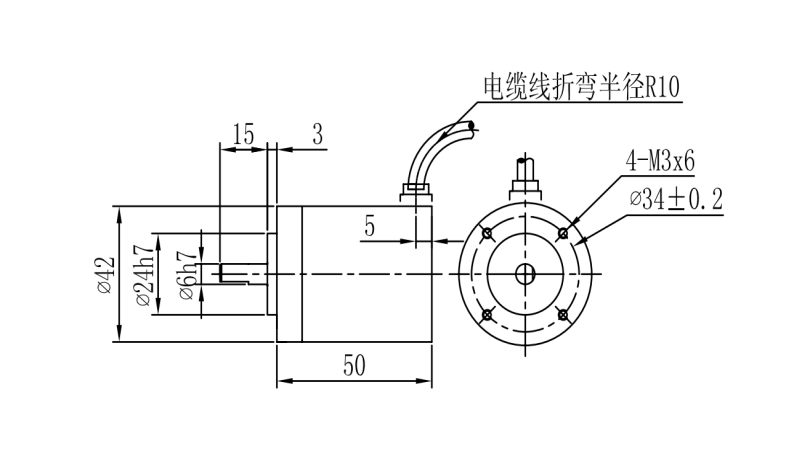

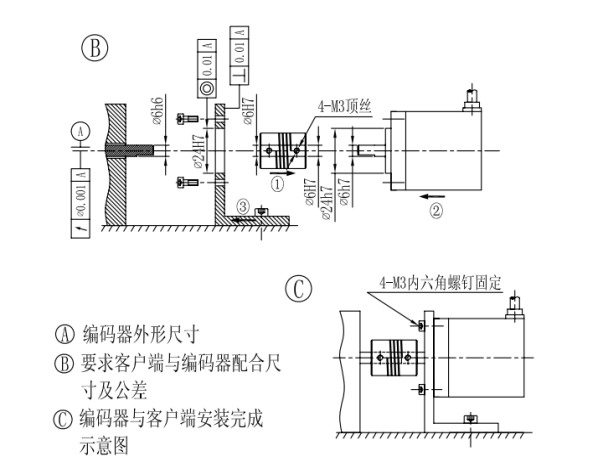

Basic Information Model RAA42S6 Product Type Photoelectric Single - turn Encoder Mechanical Parameters Outer Diameter 42mm Shaft Diameter 6mm （Solid Shaft） Maximum Speed 5000r/min Shaft Load Radial (≤20N) ; Axial (≤10N) Electrical Parameters Resolution 10-21bit Supply Voltage DC5V±5% / DC10-30V Output Code Binary Code / Gray Code Environmental Parameters Operating Temperature -40~65℃ Protection Rating IP65 Asynchronous Serial Communication Protocol RS422 / RS485 / RS232 Communication Interface Timed Transmission; Timed + Clear; Pulse Handshake; Handshake + Clear; Bus Command; Bus + Clear; MODBUS Baud Rate 115200 / 57600 / 38400 / 19200 / 9600 / 4800 Update Rate (Hz) 2000 / 1000 / 500 / 400 / 200 / 100 / 50 / 20 Synchronous Serial Communication Protocol SSI / CANopen / BiSS - C Drawing Dimension Reference：
