Manual Pulse Generator RSE
View similar products
Tag list
- Detailed
-
Compact design, easy to move.
All-plastic housing, anti-oil,sealed.
Housing with hook and magnet.
Standard spiral cable 3M.
Widely used in CNC machine tools.The Manual Pulse Generator is a precision hand‑held device that generates electrical pulses for manual control of CNC machines and automation systems. Featuring a rotating knob and axis selector, it enables accurate position adjustments, step trimming, and work origin setup, with selectable resolutions and robust anti‑interference housing for reliable performance in industrial environments.
Product Type
RSE
Axis No.
4 Axis
Resolution Switch
Optional
Enable Switch
Optional （Single enable switch）
Spiral Cable
Standard 3M
Supply Voltage
DC5V：DC8 - 26V
Output Circuit
Voltage Output
Push - pull
Open Collector
Line Driver
Wide Voltage Line Driver
Resolution
25ppr、100ppr
Signal
90° phase different, A & B signals output

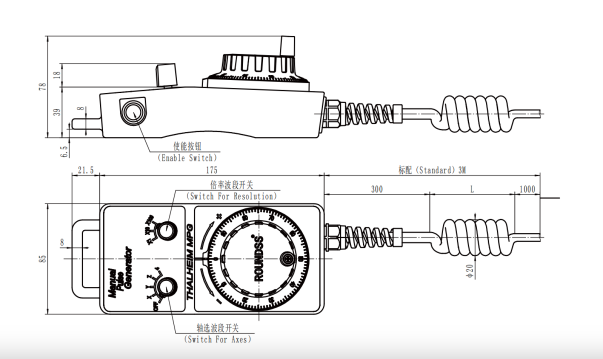

Drawing Dimension Reference：
