Manual Pulse Generator RSF

Used for origin correction and signal segmentation of CNC machine tools.

Email:

vincyliu@roundss.com.cn

adacui@roundss.com.cn

Inquire Now

File Download

Contact US !

View similar products

Manual Pulse Generator (MPG)

Tag list

Manual Pulse Generator

MPG

Detailed

All-plastic housing, anti-oil,sealed
With axis selection switch and resolution switch
Emergency stop switch and reset switch optional
Housing with hook and magnet
Used for origin correction and signal segmentation of CNC machine tools.

Product Type	RSF
Axis No.	4 Axis ；6 Axis
Resolution Switch	Optional
Emergency Stop	Optional
Spiral Cable	Standard 3M
Supply Voltage	DC5V：DC8 - 26V
Output Circuit	Voltage Output
	Push - pull
	Open Collector
	Line Driver
	Wide Voltage Line Driver
Resolution	25ppr、100ppr
Signal	90° phase different, A & B signals output

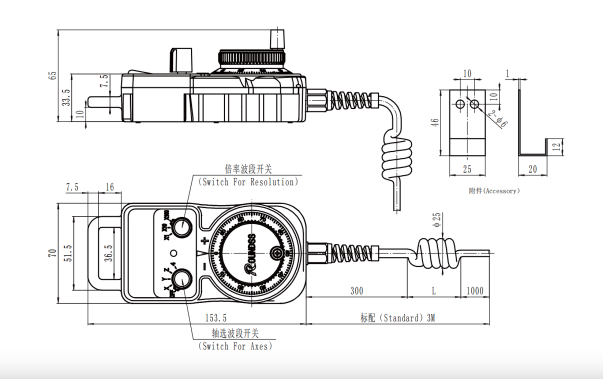

Drawing Dimension Reference：
