Manual Pulse Generator RSG
View similar products
Tag list
- Detailed
-
With machine tool inching function.
All-plastic housing, anti-oil,sealed.
Emergency stop switch and reset switch optional.
Housing with hook and pendant carrier.
Widely applied in CNC machine tools.Product Type
RSG
Axis No.
4 Axis ；6 Axis ；8Axis；12Axis (Optional)
Resolution Switch
Optional
Emergency Stop
Optional
Enable Switch
Single enable switch
Double enable switch
With feed no enable switch
With feed & enable switch
With feed & double enable switch
Without feed & double enable switch
Spiral Cable
Standard 3M
Supply Voltage
DC5V：DC8 - 26V
Output Circuit
Voltage Output
Push - pull
Open Collector
Line Driver
Wide Voltage Line Driver
Resolution
25ppr、100ppr
Signal
90° phase different, A & B signals output

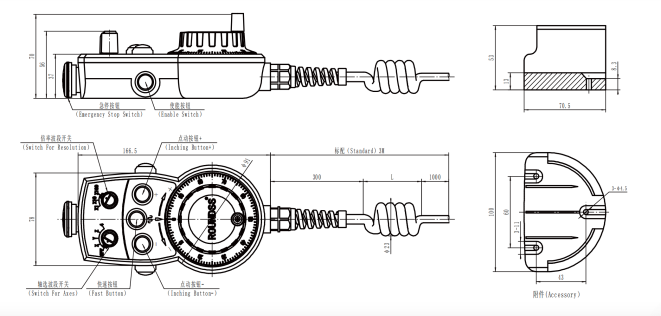

Drawing Dimension Reference：
