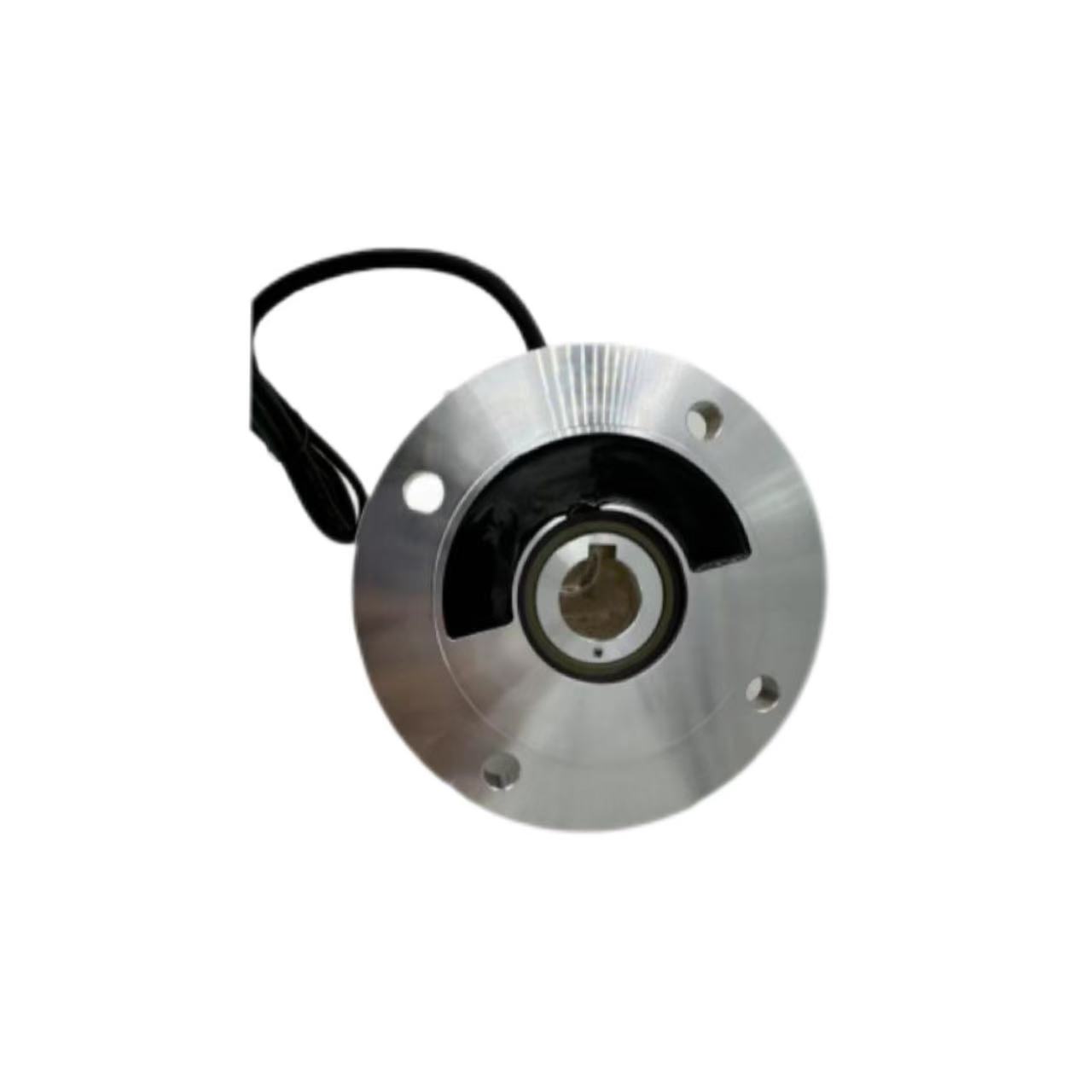

Full Hollow Shaft Incremental Encoder REC118B60
Full Hollow Shaft Incremental Encoder REC118B60
Full Hollow Shaft Incremental Encoder REC118B60
+

Share to

Full Hollow Shaft Incremental Encoder REC118B60

Email:

Inquire Now
File Download

 Contact US !

View similar products

Hollow Shaft Encoder

Tag list

  • Detailed
  • ModelREC118B60
    Product TypeClamp Hollow Shaft Rotary Incremental Encoder
    Outer Diameter118mm
    Shaft Diameter45-60mm
    Resolution120, 200, 360, 500, 512, 600, 720, 1000, 1024, 1200, 2048, 2500, 4096, 5000, 7200 (Customizable)
    Supply VoltageDC5V; DC8-26V;DC10-30V; DC12V
    Output FormVoltage Output
    Complementary Output
    Open - collector Output
    Long - line Drive Output
    Wide - voltage Long - line Output
    Output SignalOutput of Phase A (one - way)
    90° Phase - shifted A & B Signals
    Z signal
    Maximum Speed4000r/min
    Maximum Radial/Axial Load40N / 20N
    Operating Temperature-20～85℃
    Protection RatingIP52

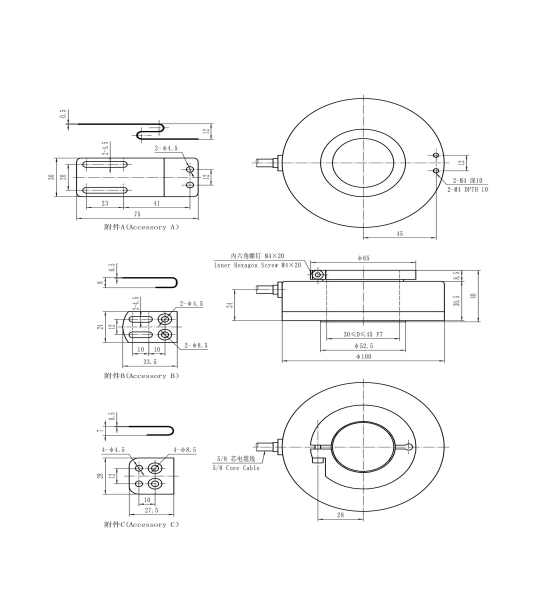

    Drawing Dimension Reference：
