Coupling

Tag list

Coupling

Detailed

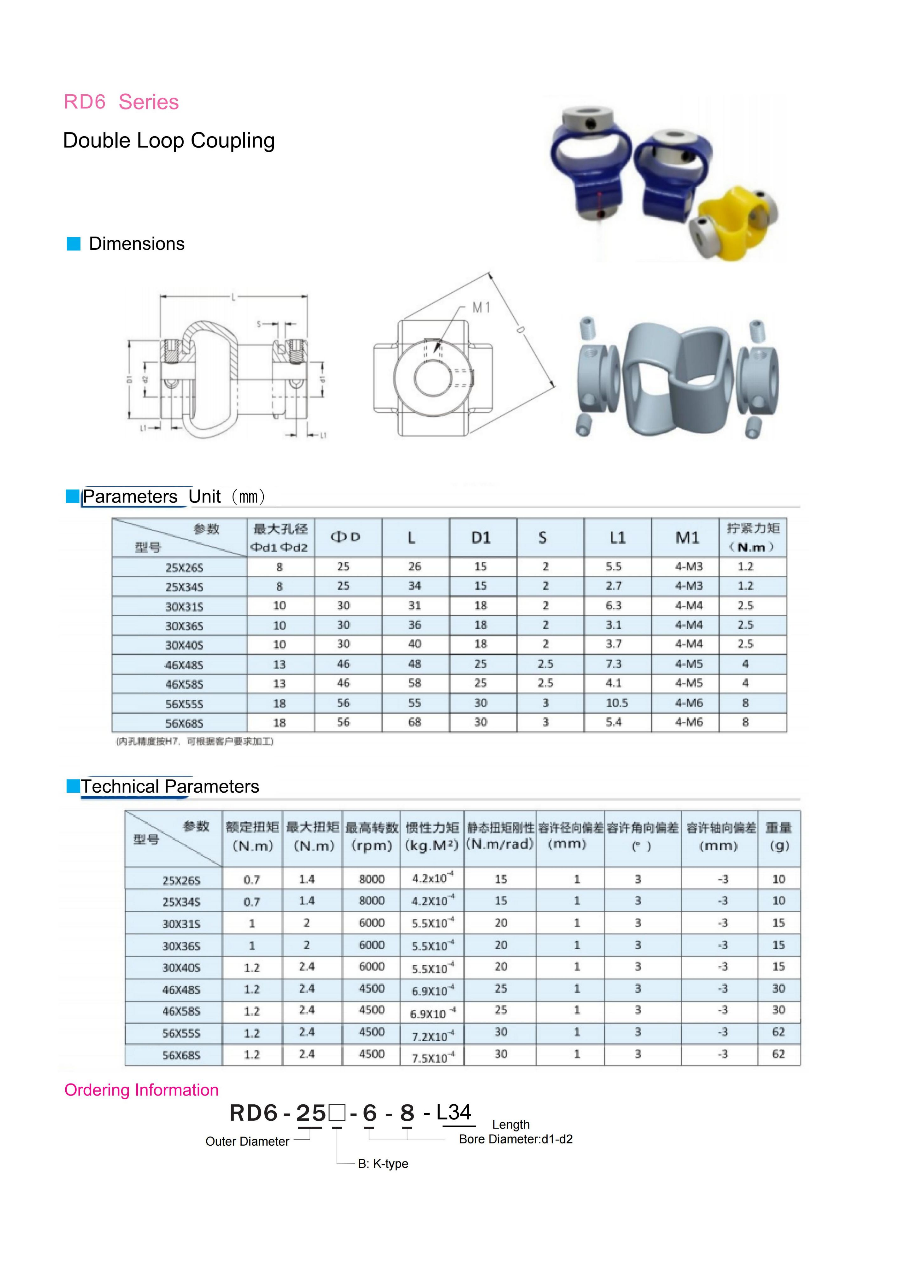

Double Loop Coupling
Model	Flange OD (mm)	Shaft Dia Range (mm)	Total Length (mm)	Max Torque (N·m)	Max Speed (min⁻¹)
25X26S	25	8	26	1.4	8000
25X34S	25	8	34	1.4	8000
30X31S	30	10	31	2	6000
30X36S	30	10	36	2	6000
30X40S	30	10	40	2.4	6000
46X48S	46	13	48	2.4	4500
46X58S	46	13	58	2.4	4500
56X55S	56	18	55	2.4	4500
56X68S	56	18	68	2.4	4500

Drawing Dimension Reference：
