Coupling RD7
- Detailed
-
Miniature Cross Slide Type Coupling
Model
Flange OD (mm)
Shaft Dia Range (mm)
Total Length (mm)
Max Torque (N·m)
Max Speed (min⁻¹)
RD7 - 16S
16
3～6.35
18
1.4
9500
RD7 - 20S
20
4～8
23
2.4
7600
RD7 - 25S
25
5～10
28
4
6100
RD7 - 32S
32
8～14
33
9
4800
RD7 - 40S
40
10～16
32
18
3800
RD7 - 50S
50
14～20
38
36
3100
RD7 - 16C
16
4.5～6
29
1.4
9500
RD7 - 20C
20
6～8
33
2.4
7600
RD7 - 25C
25
6.35～10
39
4
6100
RD7 - 32C
32
8～14
45
9
4800
RD7 - 40C
40
12～16
50
18
3800
RD7 - 50C
50
16～20
58
36
3100

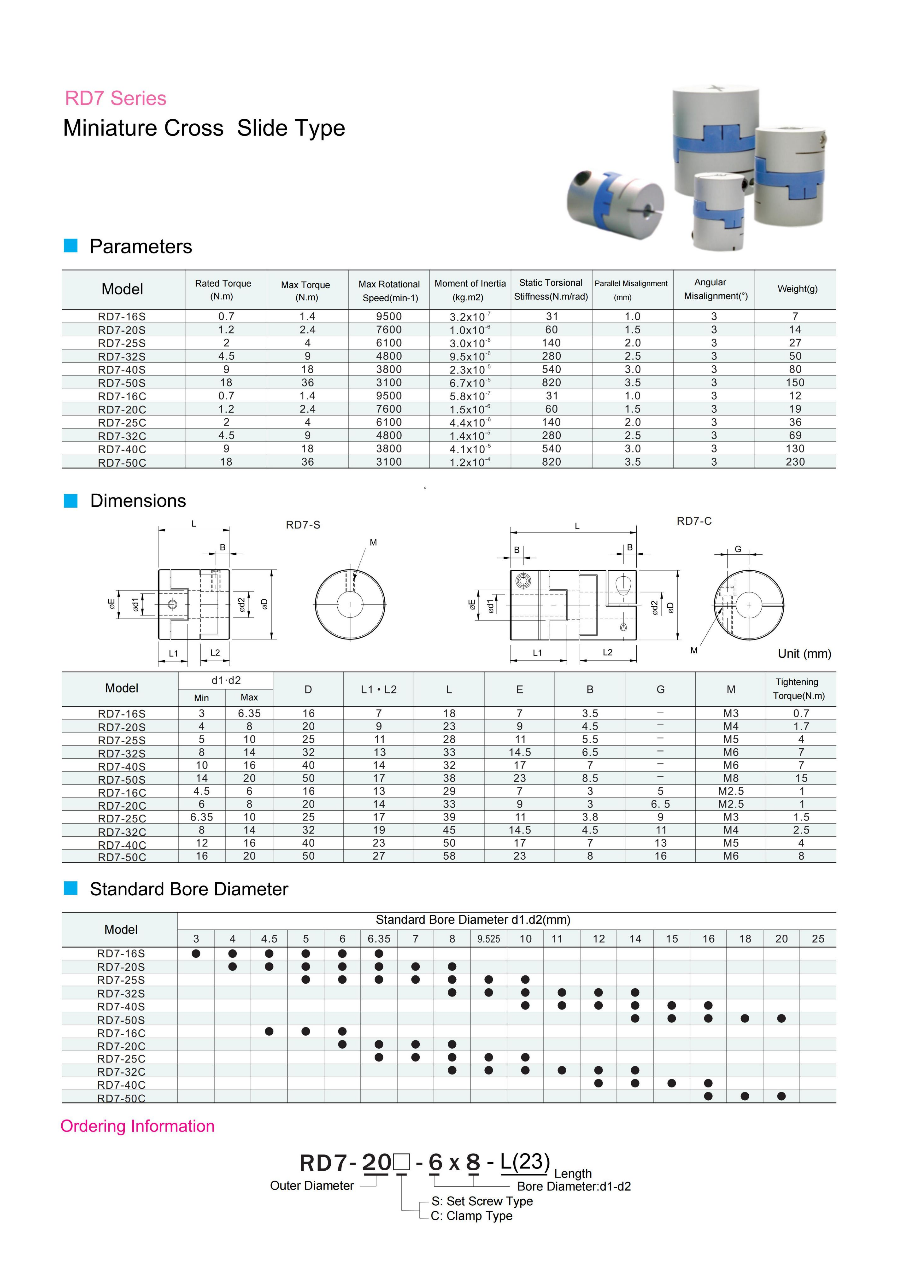

Drawing Dimension Reference：
