Draw Wire Sensor RLP95S

High repeatability of 0.01%, maximum range up to 10 m

Email:

vincyliu@roundss.com.cn

adacui@roundss.com.cn

Inquire Now

File Download

Contact US !

View similar products

Gear Tooth Encoder

Tag list

Draw Wire Sensor

Detailed

Imported precision potentiometers, Hall encoder and absolute encoder are optionalfor the analog signal output type.The output signals: current 4-20 mA, voltage0-5V , voltage 0-10V and resistance signals. The maximum stroke can reach4000MM. Working temperature :-30 *C-+90 °C.

Box Size	95*95mm
Output Type	Analog Output
Measuring Range	0-4000mm
Sensor Element	Potentiometer
Electrical Connection	Cable Radial,1m
Output Model	0-5V	0-10V	4-20mA	0-5K	0-10K
Operating Voltage	5V/12V/24V	12V/24V	8-30V	0-Vcc	0-Vcc
Resolution(mm)	Quasi infinite
Max.Reciprocating Speed	1000mm/s
Reciprocating Frequence	50Hz(Based on Reciprocating Amplitude)

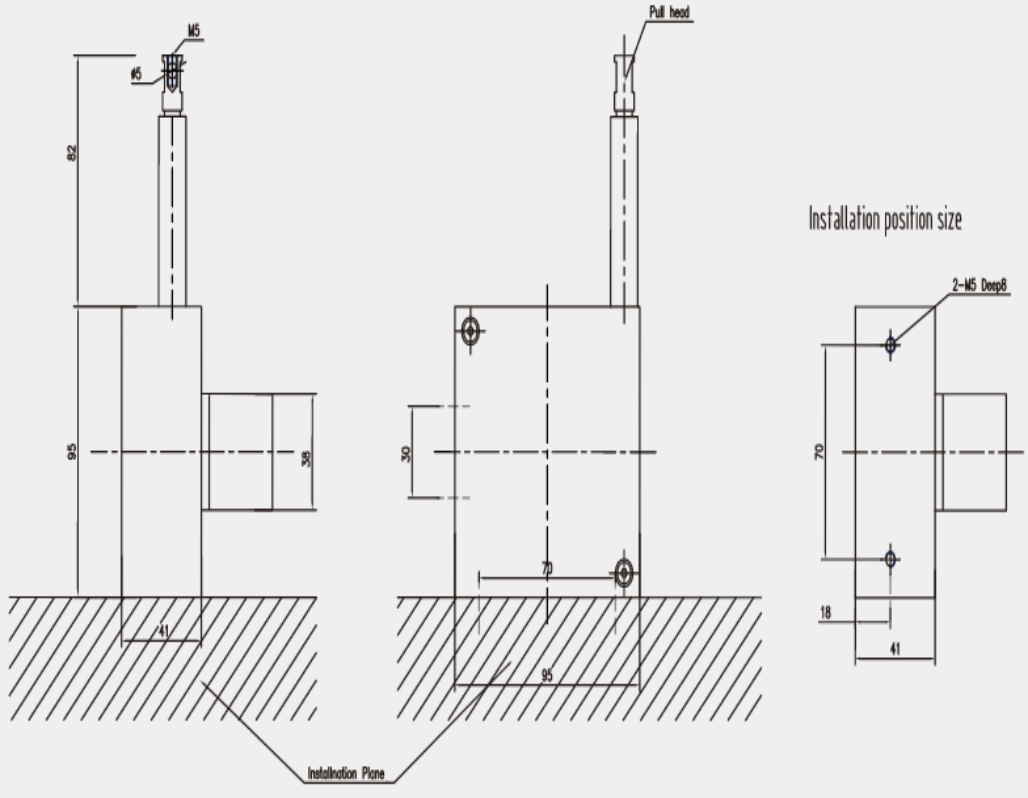

Drawing Dimension Reference：
