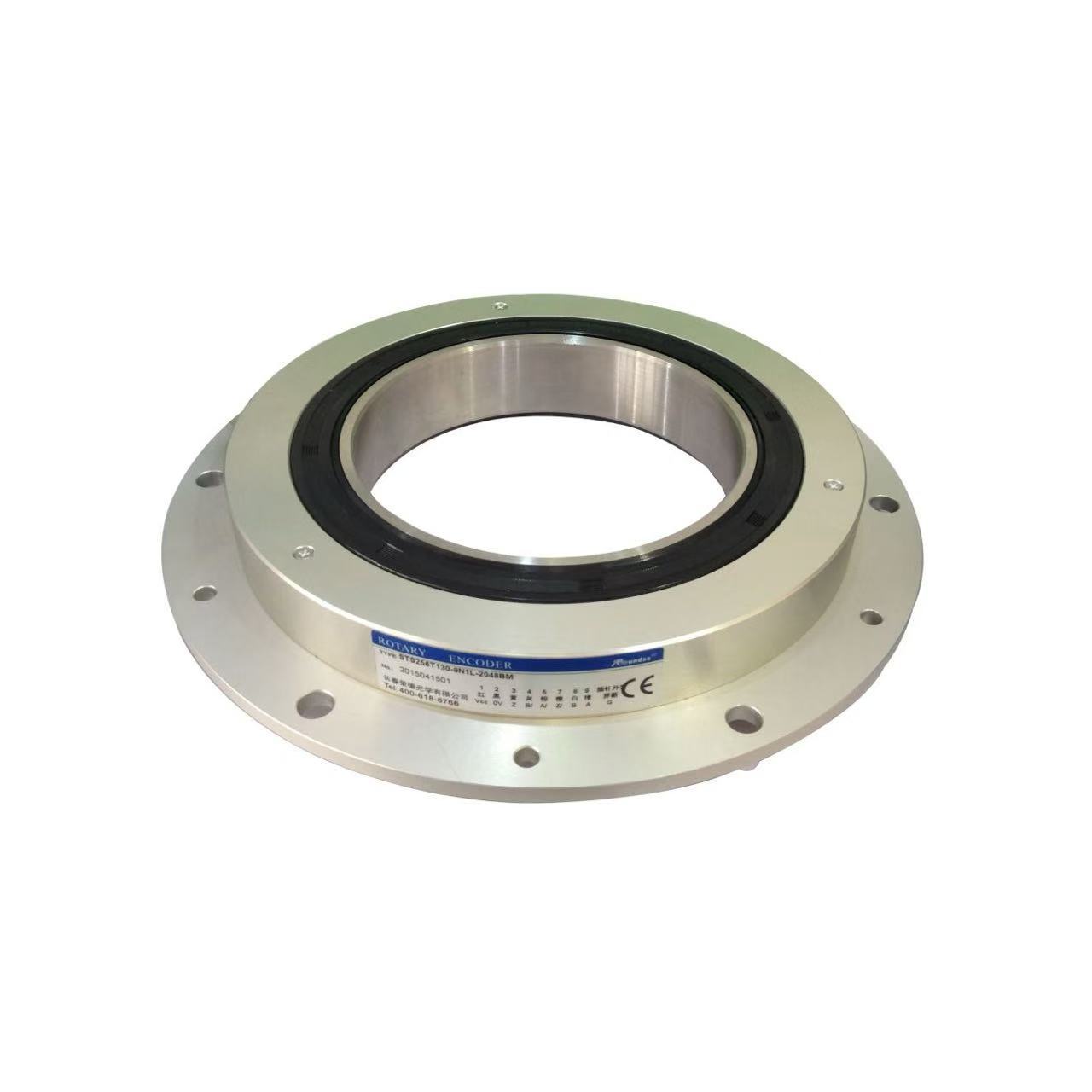

• Full Hollow Shaft Incremental Encoder STS256T
Full Hollow Shaft Incremental Encoder STS256T
+

Share to

Back to Contents

Back to Contents

Full Hollow Shaft Incremental Encoder STS256T

Email:

Inquire Now
File Download

 Contact US !

View similar products

Hollow Shaft Encoder

Tag list

  • Detailed
  • ModelSTS256T130
    Product TypeBearless spindle encoder
    Outer Diameter256mm
    Shaft Diameter130mm
    Resolution2048ppr
    Supply VoltageDC5V
    Output FormLine Drive Output (AM26C31I)
    Output Signal90° Phase - shifted A & B Signals
    Frequency Response100 kHz
    Maximum Speed5000r/min
    Maximum Radial/Axial Load100N / 50N
    Operating Temperature-40～80℃
    Protection RatingIP64

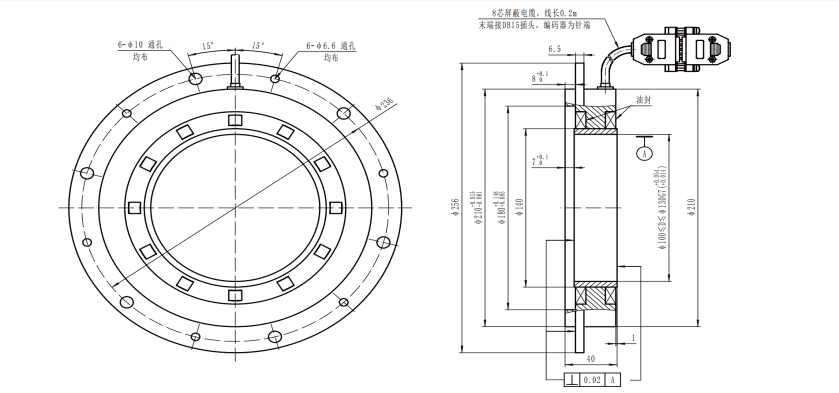

    Drawing Dimension Reference：
