Incremental Photoelectric Split SVC35T8

Email:

vincyliu@roundss.com.cn

adacui@roundss.com.cn

Inquire Now

File Download

Contact US !

View similar products

Incremental Encoder

Tag list

Detailed

Model	SVC35T8
Outer Diameter	∅35mm
Shaft Diameter	Φ6mm、Φ8mm (Taper and straight types are optional)
Supply Voltage	5V±0.25
Electrical output type	Line Drive Output
Resolution	2500ppr
Output Signals	A: A - phase single - channel output
	B: Two - channel output with 90° phase difference
	M: Zero Position Signal
Pole No	4 poles；6 poles；8 poles；10 poles
Universal Rotating Speed	8000rpm
Max Rotating Speed	15000rpm
Breaking Strength of Shaft and Bearing	≥650N
Max Response Frequency	300kHz
Operating Temperature	-20°~+85℃
Protection Class	IP50

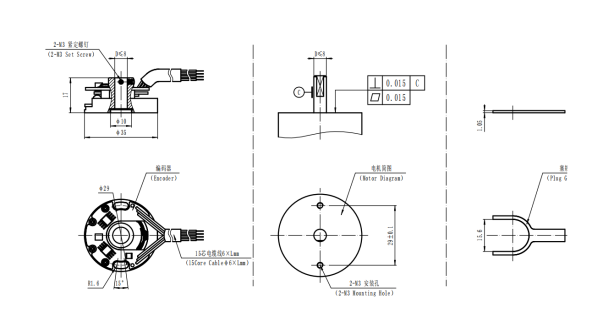

Drawing Dimension Reference：
