Draw Wire Sensor RLC63D
View similar products
Tag list
- Detailed
-
Incremental encoder and absolute encoder are optional for the digital signal output type. Output signals are square wave ABZ signals or Gray code signals. Measurement range is up to 2500mm. Linear accuracy: 0.05% FS. Resolution based on the different configuration can reach 0.001mm / pulse in maximum. Working temperature: -30 ° C-+90 ° C.
Model
RLC63D
Product Type
Draw-wire Sensor (Incremental)
Box Size
63*63mm
Measuring Range
0 - 2500mm
Output Type
Digital Output
Supply Voltage
DC5V/8 - 26V
Output Form
Voltage
Push - Pull
Open Collector
Drive Output (5V)
Wide - Voltage Drive (8 - 26V)
Sensor Resolution (mm)
0.15
0.075
0.06
0.041
0.03
Encoder Resolution（ppr）
1000
2000
2500
3600
5000
Reciprocating Frequence
50Hz
Max. Reciprocating Speed
1000mm/s
Operating Temperature
-30～90℃
Protection Rating
IP54

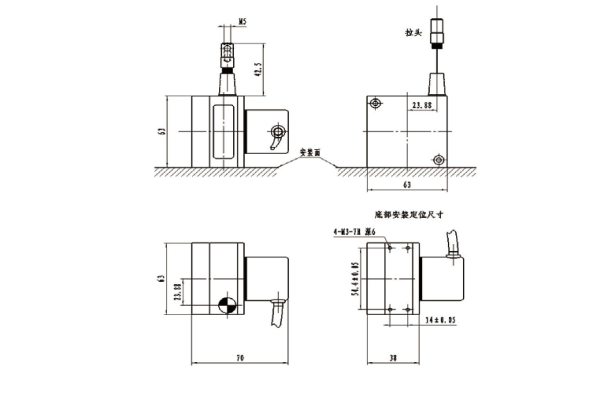

Drawing Dimension Reference：
