- Detailed
-
Imported precision potentiometers, Hall encoder and absolute encoder are optional for the analog signal output type.
The output signals:current 4-20 mA, voltage 0-5V , voltage 0-10V and resistance signals.
The maximum stroke can reach 1500MM.
Working temperature : -30 °C-+90 °C.
Box Size
63*63mm
Output Type
Analog Output
Measuring Range
0-1500mm
Sensor Element
Potentiometer
Electrical Connection
Cable Radial,1m
Output Model
0-5V
0-10V
4-20mA
0-5K
0-10K
Operating Voltage
5V/12V/24V
12V/24V
8-30V
0-Vcc
0-Vcc
Resolution(mm)
Quasi infinite
Max.Reciprocating Speed
1000mm/s
Reciprocating Frequence
50Hz(Based on Reciprocating Amplitude)

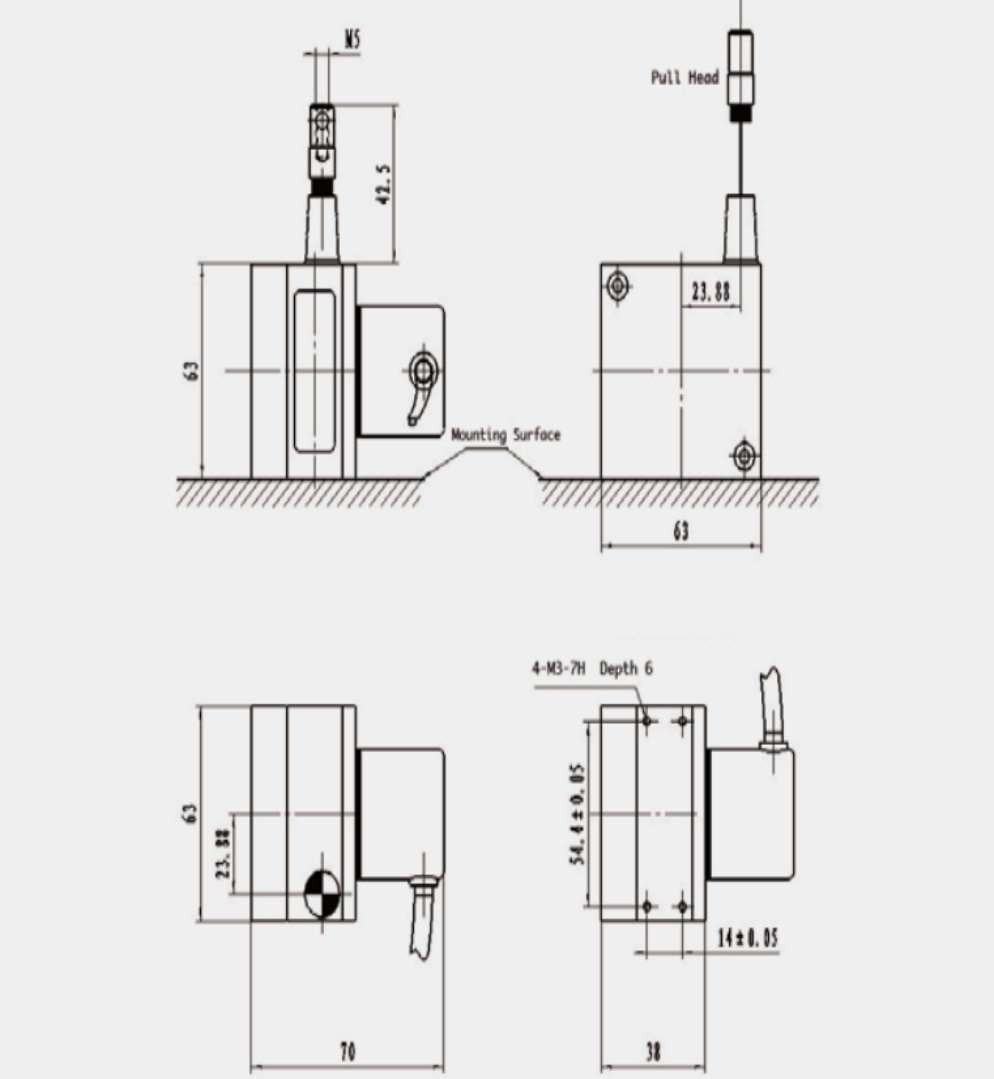

Drawing Dimension Reference：
