Box Size	78*78mm
Output Type	Analog Output
Measuring Range	0-3000mm
Sensor Element	Potentiometer
Electrical Connection	Cable Radial,1m
Output Model	0-5V	0-10V	4-20mA	0-5K	0-10K
Operating Voltage	5V/12V/24V	12V/24V	8-30V	0-Vcc	0-Vcc
Resolution(mm)	Quasi infinite
Max.Reciprocating Speed	1000mm/s
Reciprocating Frequence	50Hz(Based on Reciprocating Amplitude)

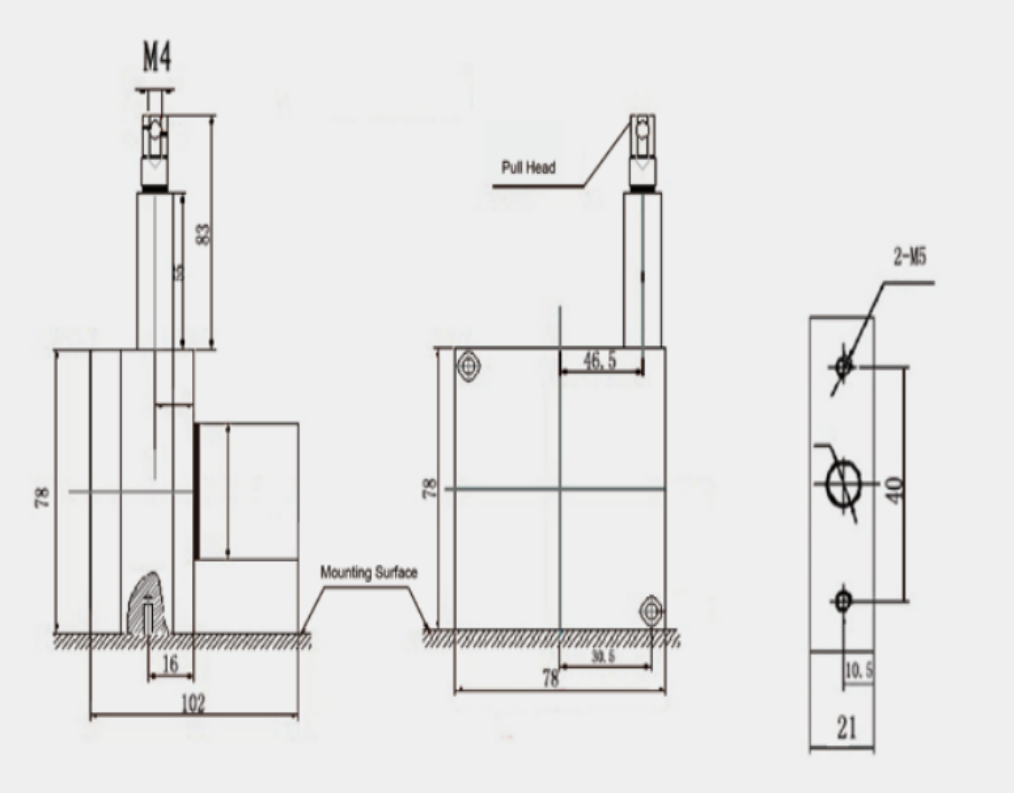

Drawing Dimension Reference：

Analog Output-RLP95S

Analog Output-RLP63S

Analog Output-RLP78S

Imported precision potentiometers, Hall encoder and absolute encoder are optional for the analog signal output type.
