Digital Output-RLC50D
View similar products
Tag list
- Detailed
-
Incremental encoder and absolute encoder are optional for the digital signal output type.
Output signals are square wave ABZ signals or Gray code signals.
Measurement range is up to 1500mm. Linear accuracy: 0.05% FS.
Resolution based on the different configuration can reach 0.001mm / pulse in maximum.
Working temperature: -30 ° C-+90 ° C.
Box Size
50*50mm
Output Type
Digital Output
Measuring Range
0-1500mm
Sensor Element
Incremental Encoder
Electrical Connection
Cable Radial,1m
Output Model
Voltage
Push-Pull
Open Collector
Line Driver(5V)
Wide Voltage Line Driver(8-26V)
Operating Voltage
DC5V/8-26V
Sensor Resolution(mm)
0.1
0.05
0.04
0.027
0.02
Encoder Resolution(ppr)
1000
2000
2500
3600
5000
Max.Reciprocating Speed
1000mm/s
Reciprocating Frequence
50Hz(Based on Reciprocating Amplitude)

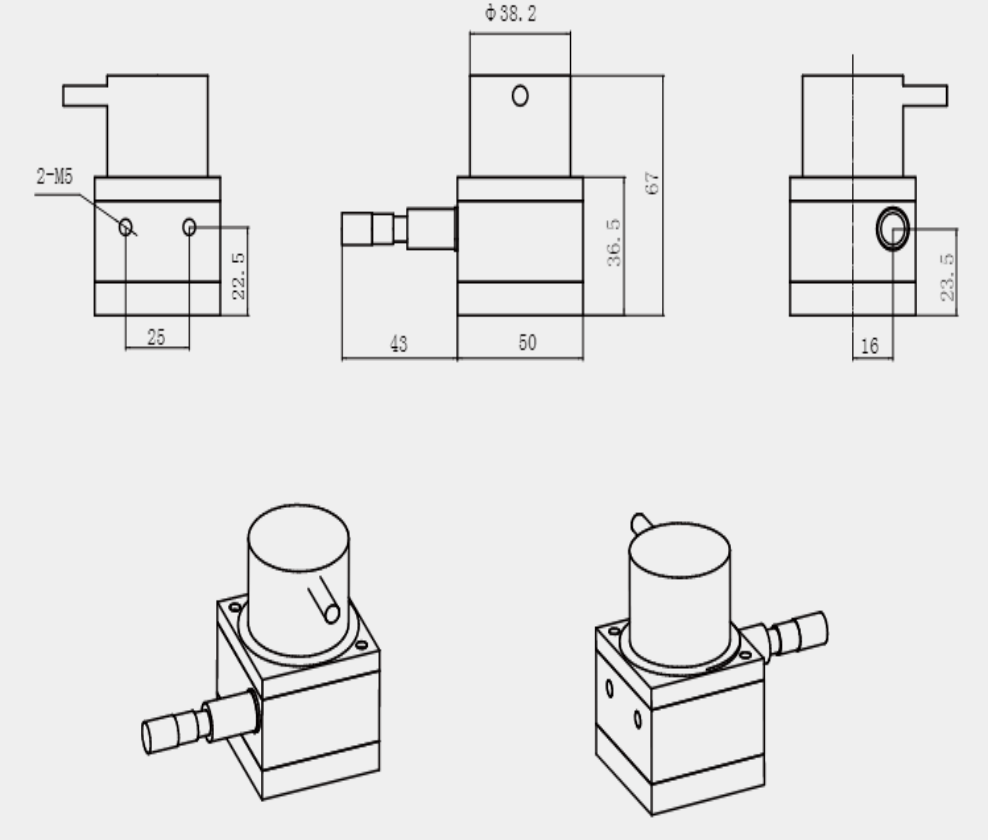

Drawing Dimension Reference：
