Magnetic Ring Encoder RTD/NTD

Incremental Hollow Shaft Magnetic Ring Encoder The encoders are available in seven sizes to accommodate different shaft sizes and their resolutions are up to 12800 pulse per revolution.

Email:

Inquire Now
File Download

 Contact US !

View similar products

Magnetic Ring Encoder

Tag list

Magnetic Ring Encoder

  • Detailed

  • The encoders are available in seven sizes to accommodate different shaft sizes and their resolutions are up to 12800 pulse per revolution.The noncontact encoder consists of a
    magnetoresistive read head, and three-channel magnetic ring. The sensor head and magnetic ring are completely enclosed in a metal housing and generates the industry standard A, B, Z output pulses for quadrature detection with reference mark.



    • Simple installation, aperture size can be freely selected,
    • Suitable for non-contact measurement of CNC machine tools
    • Maximum protection class IP65
    • Installation without changing the initial structure of the machine tool, in the position of the initial synchronous wheel

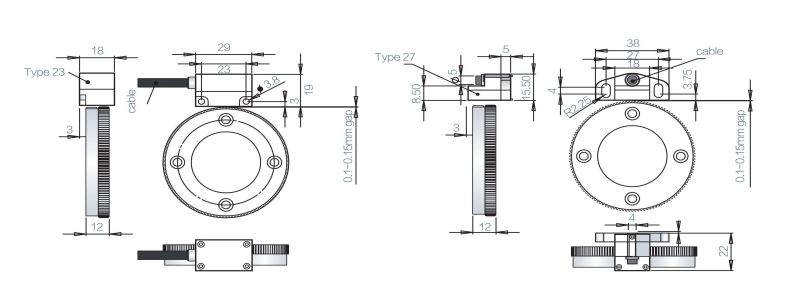

    • Separate installation of the reading head and ring

















    SPECIFICATION
    Slew Speed
    100000r/min
    Starting Torque
    3×10-2N·m
    Moment of Inertia
    6×10-5kgm
    Allowable Input Angle Acceleration
    10000rad/S2
    Output Model
    Line Driver(26LS31)/7272B
    Supply Voltage
    5±0.25V/5V-26V
    Current Requirement
    ≤200mA
    Output Voltage
    Vh≥2.5V,Vt≤0.5V
    Frequency Response
    0-300kHz
    Pulse No.
    1024BM,2048BM,3600BM,5000BM
    Diameter
    Φ82,Φ115,Φ122,Φ160,Φ163,Φ203，Φ287
    Accessories
    A,B,C,D,E,F,G,H
    Reading Head
    T,I,P,L
