Gear Tooth Encoder-CGNMH
View similar products
- Detailed
-
Compatible with a variety of controllers.
The sensor chip features a post-signal automatic calibration chip.
The output signal amplitude can be set to automatic control mode.
Suitable for high-speed cutting applications.
High-speed stability.Model
CGNMH
Readhead
23 type; 27 type
Inner diameter
10 - 230mm
Teeth
no. 64 - 1024
Interpolation factor
1/2/4/8/10/16/20/25/32/50
Supply Voltage
DC5V
Output signal analog
1 vpp or TTL
Max. response frequency
600KHz
Operating temperature
-30~120℃
Protection class
IP68

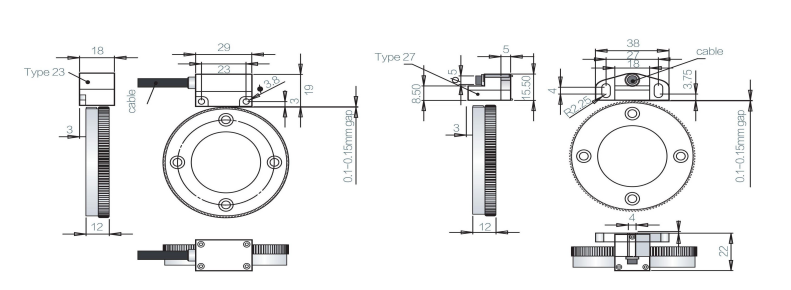

Drawing Dimension Reference：
Gear Tooth Encoder is a precision sensing device designed to detect the speed and position of rotating gears in industrial and automotive systems. It works by monitoring the passing of gear teeth and converting mechanical motion into electrical signals for accurate measurement and control. Featuring high sensitivity and fast response, it ensures reliable performance even in high-speed and harsh environments. Built with durable housing and advanced sensor technology, it offers excellent resistance to vibration, dust, and temperature variations. It is widely used in engines, transmissions, automation equipment, and motion control systems. Easy to install and highly accurate, it is an essential component for real-time monitoring and precise control applications.
