  • Detailed

  • Magnetic ring encoder is non-contact design, with oil resistance, long life, high response frequency. Mostly used in numerical control machine tools, industrial measurement and control and other fields.

    ModelSTS256T130
    Product TypeBearless spindle encode
    Outer Diameter256mm
    Shaft Diameter130mm
    Resolution2048ppr
    Supply VoltageDC5V
    Output FormLine Drive Output (AM26C31I)
    Output Signal90° Phase - shifted A & B Signals
    Frequency Response100 kHz
    Maximum Speed5000r/min
    Maximum Radial/Axial Load100N / 50N
    Operating Temperature-40～80℃
    Protection RatingIP64

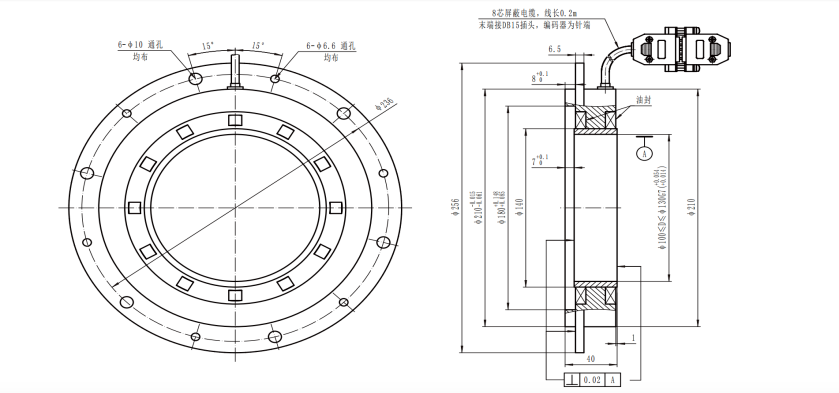

    Drawing Dimension Reference：
