Magnetic Ring Encoder STS185T

Magnetic ring encoder is non-contact design

Email:

Inquire Now
File Download

 Contact US !

View similar products

Magnetic Ring Encoder

Tag list

Magnetic Ring Encoder

  • Detailed

  • Magnetic ring encoder is non-contact design, with oil resistance, long life, high response frequency. Mostly used in numerical control machine tools, industrial measurement and control and other fields.

    Model

    STS185T95

    Product Type

    Bearless Spindle Encode

    Outer Diameter

    185mm

    Shaft Diameter

    95mm

    Resolution

    1024ppr

    Supply Voltage

    DC5V

    Output Form

    Line Drive Output (AM26C31I)

    Output Signal

    90° Phase - Shifted A & B Signals

    Frequency Response

    100 kHz

    Maximum Speed

    10000r/min

    Maximum Radial/Axial Load

    100N / 50N

    Operating Temperature

    -40～80℃

    Protection Rating

    IP64

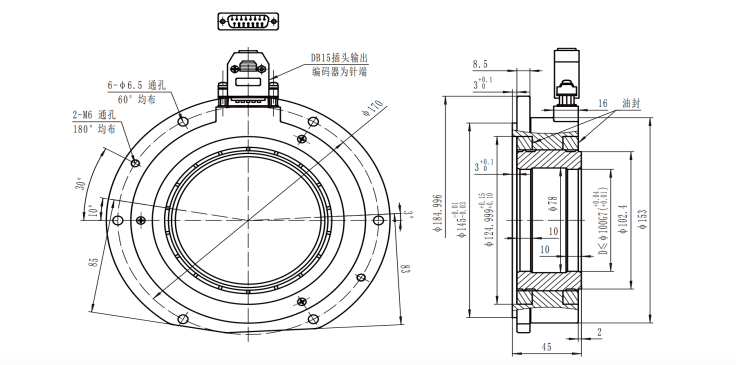

    Drawing Dimension Reference：
