  • Detailed

  •

    Model

    SAM21 Absolute Value Magnetic-Electric Split-type

    Outer Diameter

    21mm*21mm

    Shaft Diameter

    φ5mm

    Supply Voltage

    5V±0.25

    Battery Voltage

    3.6V

    Communication Interface

    RS485

    Baud Rate

    2.5MHz (Optional for Mass Production)

    Update Rate

    16K

    Communication Protocol

    Timed Transmission

    Communication Code System

    Positive Logic Binary Code

    Resolution-Single-Turn

    17bit

    Resolution-Multi-Turn

    16bit

    Operating Speed

    ≤6000rpm

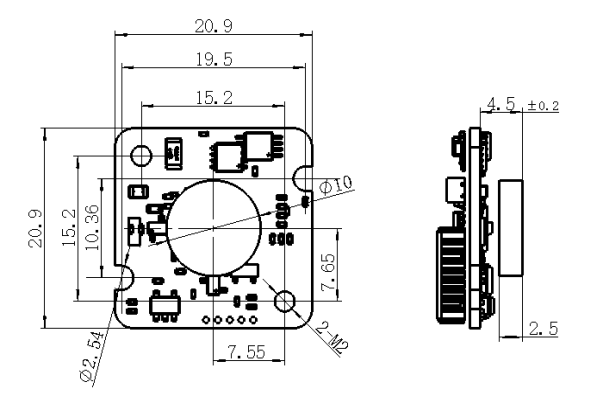

    Drawing Dimension Reference：
