Coupling RD8-S
- Detailed
-
Parallel Set Screw Fixation Type Coupling
Model
Flange OD (mm)
Total Length (mm)
Max Torque (N·m)
Max Speed (min⁻¹)
RD8 - 12C
12
18.5
0.4
12000
RD8 - 16C
16
23
0.6
9500
RD8 - 20C
20
26
1
7600
RD8 - 25C
25
30
2
6100
RD8 - 32C
32
41
4
4800
RD8 - 40C
40
56
10
3800
RD8 - 50C
50
71
20
3100
RD8 - 63C
63
90
40
2400
RD8 - 12CS
12
18.5
0.6
12000
RD8 - 16CS
16
23
1
9500
RD8 - 20CS
20
26
2
7600
RD8 - 25CS
25
31
4
6100
RD8 - 32CS
32
41
7
4800
RD8 - 40CS
40
56
16
3800
RD8 - 50CS
50
71
30
3100
RD8 - 63CS
63
90
70
2400

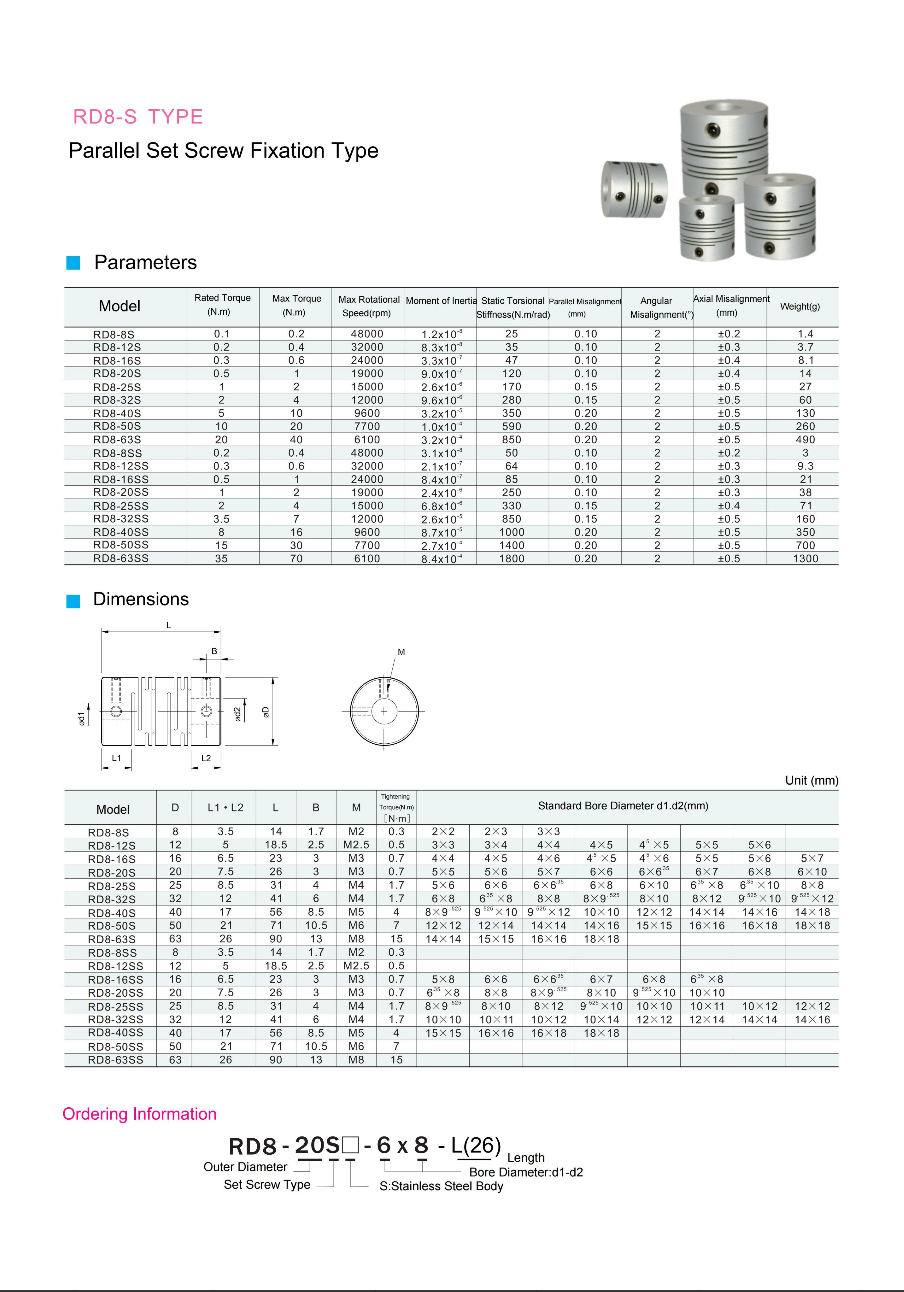

Drawing Dimension Reference：
