Analog Output-RLP210S
View similar products
Tag list
- Detailed
-
Imported precision potentiometers, Hall encoder and absolute encoder are optional for the analog signal output type.
The output signals: current 4-20 mA, voltage 0-5V , voltage 0-10V and resistance signals.
The maximum stroke can reach 20000MM. Working temperature : -30 °C-+90 °C.
Box Size
210*210mm
Output Type
Analog Output
Measuring Range
0-20000mm
Sensor Element
Potentiometer
Electrical Connection
Cable Radial,1m
Output Model
0-5V
Operating Voltage(DC)
5V/12V/24V
Resolution(mm)
Quasi-infinite
Max.Reciprocating Speed
1000mm/s
Reciprocating Frequence
50Hz(Based on Reciprocating Amplitude)

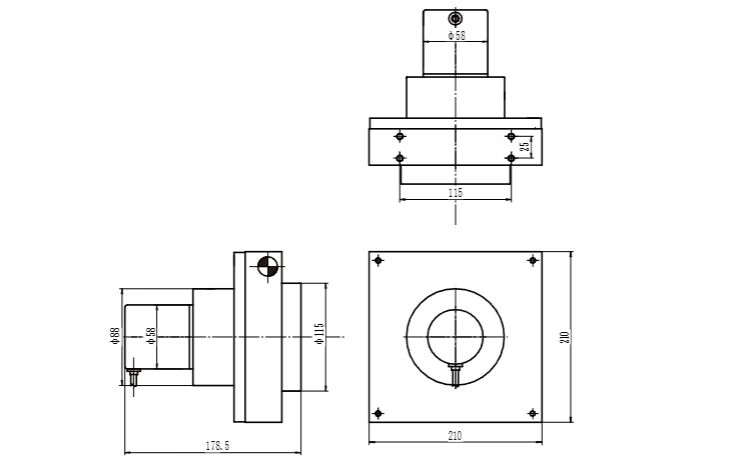

Drawing Dimension Reference：
